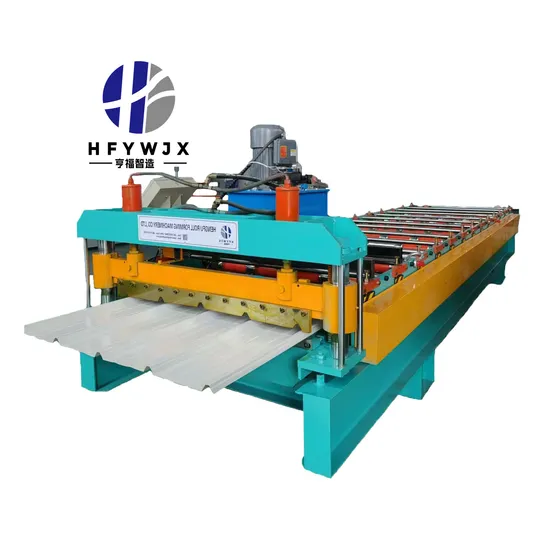

Metal Single-Layer Roof Tile Roll Forming Machine

Product Description

Basic Info.

Model NO	1040
Condition	New
Usage	Roof
Feeding Width	1200mm
machine frame	300H steel frame
Forming Speed	10-15M/min
Color	Custimized
Type of Driven	Chain drive
Transmission Method	Electric
Number of rolling mill sets	13 row molding
Spindle diameter	Φ70mm(Solid shaft)
Customized	Customized
Feeding method	Iron plate feeding rack
Specification	7000mmx1300mmx1500mm
Origin	Cangzhou, Hebei
Warranty	1 year
Usage	Building

Product Description
The single-layer tile press drives various mechanical components to work together through a motor, and sends the color steel plate raw materials into the tile press for roll forming to press them into specific shapes and specifications. Featuring high efficiency, precision, easy operation (remote control operation), and strong adaptability, it can be customized to high standards according to customer needs.

Raw materials	Galvanized steel plate, color steel plate
Machine frame	300H steel frame
Feed width	1200mm

Pattern diagram
Processing Flow:
Detailed Photos

1. Framework: 300H steel
2. Number of rolling mill units: 13 rows for forming
3. Roll material: 45 # steel rough turning, fine turning, outer circle grinding, electroplating treatment
4. Spindle diameter: Φ 70mm
5. Feeding method: Iron plate feeding rack
6. Cutting: Cut after molding, four column pull rod guide column shearing
Company Profile
Hebei Hengfu Roll Forming Machine Co., Ltd. is a professional manufacturer of cold-bending forming equipment and its complete set of automated production lines. With advanced production equipment and product development and design capabilities, the products are at the leading level in the industry with the advantages of high rate, high precision, high flexibility, and low processing loss, and the products are favored by industry customers.
Our company's main products include: color steel plate equipment, glazed tile equipment, floor decking equipment, CIZ steel forming equipment, composite sandwich panel assembly line equipment, car compartment panels, dust removal anode plates and other equipment. We can design and manufacture special models according to user requirements, provide users with technical guidance, production installation, commissioning, and after-sales one-stop service.
In recent years, a large number of products have been sold to more than 50 countries and regions including Russia, India, the United Kingdom, Australia, Kazakhstan, etc., and have been well received by customers at home and abroad.
Certifications:
Company:
Workshop:
Customer & EXPO:
Transaction transportation:
FAQ


Q1: Are you a trading company or a factory?
A1: We are a manufacturer located in Cangzhou, Hebei. We have our own Having their own product design team. Welcome to visit our factory and inspect the quality of our machines on-site
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5: Can you finish the machine during the delivery time?
A5: We will finish the machine in time according to determined lead time.

---
