PRODUCTS DESCRIPTION

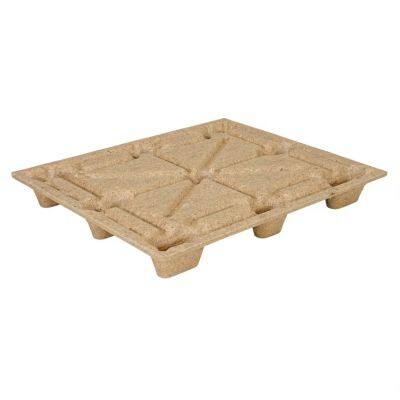

The wooden pallet molding machine is a special equipment for the efficient production of wooden pallets. It mainly uses the molding technology to mix wood materials such as sawdust, wood fiber, shavings, etc. with environmentally friendly adhesives, and then presses them under high pressure and high temperature to form them. This equipment is widely used in logistics, ware housing, packaging and other industries. It can replace traditional solid wood pallets and has the advantages of low cost, high strength and environmental protection. Compared with traditional wooden pallets, molded wooden pallets adopt a high temperature and high pressure one-time molding process, which has the advantages of uniform structure, strong load-bearing capacity, and not easy to crack and deform. Its surface is smooth and burr-free, with better moisture and corrosion resistance, and no need for nail reinforcement to avoid the risk of loosening. At the same time, standardized production is more suitable for automated warehousing and handling, and the overall cost is lower.
PRODUCT PARAMENTERS
| 1250T | 1600T |
| Master cylinder nominal force(KN) | 12500 | 16000 |
| Maximum working pressure of liquid (MPa) | 25 | 25 |
| Cylinder stroke(mm) | 700 | 700 |
| Maximum opening height(mm) | 1250 | 1200 |
| Nominal force of lower cylinder（KN） | 400 | 400 |
| Lower cylinder stroke(mm) | 200 | 200 |
| Master cylinder slider speed No-load downlink (mm/s) | 160 | 180 |
| Workbench effective area Left and right (inside the column)(mm) | 1700 | 1800 |
Servo motor power (KW)
| 45 | 55 |
DIVERSIFIED MATERIALS
Raw materials consist of two major categories: wood-based and non-wood materials. Wood materials include virgin timber (hardwoods like oak/maple, softwoods like pine/cedar, eucalyptus), wood processing residues (sawdust, wood powder, bark), and fast-growing plantation timber (poplar, paulownia). Non-wood materials involve bamboo resources (fiber, bamboo powder), agricultural waste (wheat/rice straw, coconut husk, bagasse), industrial byproducts (rice husk, palm empty fruit bunches), and other plant fibers (sisal, banana stems). Utilizing eco-friendly compression molding technology, these renewable resources achieve effective recycling while meeting diverse load-bearing requirements.
CORE FUNCTIONS AND FEATURS
Efficient production: Rapid pressing is achieved through automated control systems, shortening production cycles and increasing production capacity.
Environmental protection and energy saving: Renewable wood waste is used as raw materials to reduce waste of wood resources; the heating system is optimized to reduce energy consumption.
Stable structure: precise mold design, uniform product size, strong pallet bearing capacity, and adaptable to various cargo transportation needs.
Convenient operation: integrated human-machine interface, intuitive parameter adjustment, and support for customized production of pallets of different specifications.
PRODUCTION LINE
Wood press pallet processing begins with logs or wood waste being processed into uniform wood chips through a chipping machine. These wood chips are subsequently pulverized into fine fibers or sawdust through a crushing process. The raw wood material then enters a drying phase where moisture is removed using industrial drying equipment.
The dried wood fibers are pneumatically conveyed to a storage silo via an induced draft system. In the next stage, the dried fibers are uniformly blended with adhesive in a specialized mixing unit. This homogeneous mixture is then transferred to a molding press where it undergoes high-pressure, high-temperature compression molding. This final thermo-mechanical process creates durable, high-strength pallet structures with consistent density and dimensional stability.
product packaging
our factory
The factory covers an area of 6,000 square meters and has a full set of advanced molded pallet production lines. It is a high-quality molded pallet overall solution provider. The company's pallets are diverse in style and leading in quality. We can design and develop exclusive molded pallets and production molds for customers' products. We practice the development and management concept of linking pallets with production equipment, continuously optimize production processes and equipment performance, and tailor a full set of molded pallet production lines for customers, becoming a leader in the molded industry integrating R&D, production, and sales.
FAQ
1.How many sizes of pallets can one pallet machine produce?
Press pallet machine can use different size molds to produce different sizes of pallets, and the mold sizes are downward
compatible
2.What are the ground requirements for the placement of the press machine? Do you need to lay a foundation?
We recommend that the thickness of the concrete floor be no less than 15 cm. The 1000-1200T press will not transmit the pressure to the ground. The ground only bears the weight of the machine itself.
3.Can the pallet mold be added with customer LOGO?
We support engraving your company logo or letters on the mould.
4.Can the production line be fully automated?
Yes, we have fully automatic operation line and manual operated line available at your request.
5.When equipment fails, can overseas technical team support be provided?
We provide a 2-year warranty for fully automated production line customers, remote diagnosis within 48 hours, and dispatch engineers when necessary
6.Are pallets suitable for forklifts and AGV equipment in automated warehouses?
Yes. The pallet bottom reinforcement design ensures compatibility with fork tines, and the surface anti-slip pattern and precise dimensions (±2 mm tolerance) support AGV efficient handling.
7.Does the pallet's load capacity comply with international standards, such as ISO 8611 or EUR-pallet?
Our molded pallets have a static load of up to 6 tons and a dynamic load of 1-2 tons through structural optimization (such as rib design and combined support blocks), which complies with ISO 8611 standards. They can also be customized to meet EUR (1200×800 mm)or North American standards (48×40 inches).
>>
