Davit Proof Load Test Water Filled Weight Bags

US$1,599.00
1-49 Sets
US$1,350.00
50-99 Sets
US$1,110.00
100+ Sets

Basic Info.

Model NO.
MME-5T
Material
PVC, PVC
Suitable for
Adult, Adult
Type
Water Weights, Water Bags
Using Field
Testing
Color
Orange/Yellow/Black
Model
According to Your Requirements
Proof Load Weight
0.25-50t
Diameter
0.8-5.1m
Length
1.2-7.7m
Bag Weight
8-450m
Certificate
CCS
Transport Package
According to Customer ′s Requirment
Specification
CCS approved
Trademark
MATCHAU
Origin
Jiangsu China
HS Code
3923290000
Production Capacity
Export Packing

Product Description

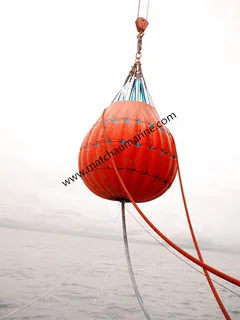

Davit Proof Load Test Water Filled Weight Bags(body made by 1.2mm thickness high strength PVC coated fabic material)
1.Specifications:
Easy to store and transport;
Durable and strong;
Easy to fill and discharge;
Repairable;
Equipped with an automatic pressure relief valve;
2.Capacity as following:
Item Model Proof Load Weight
(MT)		 Diameter
(M)		 Length
(M)		 Bag Weight
(KGS)
1 MME-0.25T 0.25 0.8 1.2 8
2 MME-0.5T 0.5 1.0 1.5 10
3 MME-1T 1 1.2 1.8 19
4 MME-2T 2 1.5 2.3 22
5 MME-3T 3 1.8 2.7 28
6 MME-4T 4 1.9 2.9 52
7 MME-5T 5 2.3 3.3 67
8 MME-6T 6 2.4 3.4 84
9 MME-8T 8 2.54 3.6 104
10 MME-10T 10 2.65 3.9 108
11 MME-12.5T 12.5 2.9 4.1 112
12 MME-13T 13 2.9 4.2 128
13 MME-15T 15 3.0 4.35 130
14 MME-20T 20 3.5 6.0 156
15 MME-25T 25 3.9 6.1 190
16 MME-30T 30 4.0 8.2 210
17 MME-35T 35 4.3 6.8 300
18 MME-40T 40 4.5 7.4 390
19 MME-50T 50 5.1 7.7 450

Load cell also can be provided,and the specifications is as following:
Model Cap.(T) Division Value
(kg)		 A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 φ
(mm)		 H
(mm)		 Material
MC-SW6-01 1 0.5 245 112 37 190 43 335 Aluminium Alloy
MC-SW6-02 2 1 245 116 37 190 43 335
MC-SW6-03 3 1 260 123 37 195 51 365
MC-SW6-05 5 2 285 123 57 210 58 405
MC-SW6-10 10 5 320 120 57 230 92 535 Alloy Steel
Stainless Steel
MC-SW6-20 20 10 420 128 74 260 127 660
MC-SW6-30 30 10 420 138 82 280 146 740
MC-SW6-50 50 20 465 150 104 305 184 930
MC-SW6-100 100 50 570 190 132 366 229 1230
MC-SW6-200 200 100 725 265 183 440 280 1380
MC-SW6R-250 250 100 800 300 200 500 305 1880
MC-SW6R-300 300 200 875 345 200 500 305 1955
MC-SW6R-500 500 200 930 570 200 500 305 2065

3. Twins layers high strength durable 1.6MPa fire hose with Al fittings:
4. Soft protective bag packing:
5. Wooden case packing for transfer/shipping:
