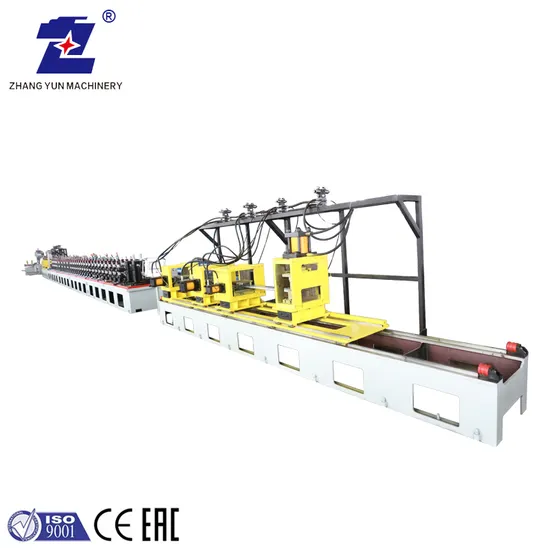

Direct Factory Manufacturing Light Gauge Steel Cold Roll/Rolling Forming/Former Making Machine for Suspended Ceiling Profiles

US$14,900.00-28,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ZY-GY130
Certification
CE, ISO9001
Customized
Customized
Condition
New
Control Type
CNC
Automatic Grade
Automatic
Size
4000-10000*800*1000mm
Power
3.3-14 Kw
Strip Material Material
Q235/SUS304
Width of Strip
30-100 mm
Thickness of Strip
0.1-0.8 mm
Rolling Speed
0-25 M/Min
Roller Die Material
Cr12
Voltage
380V, 3phase, 50Hz
Transport Package
Shipping, Rain-Proof Package
Trademark
Zhangyun
Origin
Zhangjiagang City
HS Code
8455212000
Production Capacity
200 Sets/Year

Product Description

Direct Factory Manufacturing Light Gauge Steel Cold Roll/Rolling Forming/Former Making Machine for Suspended Ceiling Profiles
Workflow
Equipment Specifications
Feeding Direction
From Right to Left
Voltage
380V, 3Phase, 50Hz
Roller die material
Cr12, quenched, hardness about HRC60°46#
Gear Oil
18# Hyperbolic gear oil
Strip material material Q235/SUS304
Width of Strip 30 mm~100 mm
Thickness of Strip
0.1 mm~0.8 mm
Mill length
≤10 m
Rolling Speed
0~25 m/min

Zhangjiagang City Zhangyun Machinery Manufacturing Co., Ltd. is established in 2002, manufacturer of elevator guide rail processing production line machinery, cold roll forming line machinery and high frequency tube welding line machinery.
Quality Oriented,Technology Innovation is our core concept. Each component of our machines is examined and qualified before assembling; each set of our equipment is fully test run before delivery.
