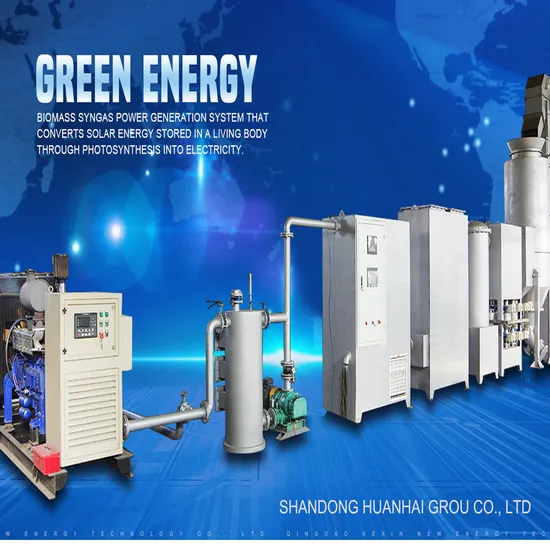

200kw 400kw 800kw 1MW Wood Chips Biomass Gasifier Power Plant

Product Description

200KW 400KW 800KW 1MW 2MW 3MW 5MW 10MW Fluid bed wood chip biomass gasifier and generator power plant project introduction:
1) Preparation of Biomass (wood chips ,straw):
Required humidity of wood chips,straw should be less than 18%.
Required size should be less than 5cm. Heat value > 3200kcal/kg
2) Biomass Gasification Processing flow:
Straw, wood chips, Saw dust is feeded to fixedbed gasifier by feeder, which react with air to be fuel gas. The fuel gas will be CO, H2, CH4 ,CnHm etc. the heat value is around 950~1200kcal/Nm3.
3) Gas cleaning process:
Use water as media of purification process . Based on different temperature and ash content in different stage , choose to use different wet purification device with different capability in order to well remove tar and dust till gas quality meet the demand of IC Gen-set. Meanwhile, the cooling water can be recycled to meet zero pollution ,zero release.
4) Power generation process:
after cleaning and cooling The gas is sent to engine passed through buffer tank. Generator work to output power driven by engine. The power is distributed to each user .rated power of each unit gen-set is 400kw
5) Waste Heat Application Process:
The waste heat of IC engine are from two parts. One part: exhaust gas the temperature is around 500ºC. It can be used for boiler and heat water . the other part: the cooling water from cylinder of engine. The temperature is 60ºC. It can be used to supply hot water.
Use PLC controlling system . Track and monitor signal through sensor to control various equipments . Temperature inside gasifier and quality of gas is able to be controlled automatically. PLC controlling system enhance the stability , and efficiency of system.
Specification parameters

Name	Made in China hotel with 50KW biomass syngas power generation equipment, can be fired heating boiler, self-use power generation
Power generation	Model	Syngas production	Raw material consumption
10KW	KX-30A	30m3/h	15kg/h
20KW	KX-50SA	50m3/h	25kg/h
30KW	KX-100SA	100m3/h	50kg/h
50KW	KX-150SA	150m3/h	75kg/h
100KW	KX-300SA	300m3/h	150kg/h
150KW	KX-450SA	450m3/h	230kg/h
200KW	KX-600SA	600m3/h	300kg/h
250KW	KX-750SA	750m3/h	330kg/h
300KW	KX-900SB	900m3/h	450kg/h
400KW	KX-1200SB	1200m3/h	600kg/h
500KW-1MW	KX-1500SB	1500m3/h	750kg/h
Caloric value of syngas	1000-1200Kcal
Gasification effiency	>75%
Voltage power	380V/400V/410V/420V 50Hz/60Hz (Customizable)
Types of raw materials	Wheat straw, peanut shells, rice husks, corn cobs, corn stalks, wood, wood chips, wood chips, nut shells, walnut shells, macadamia shells, pistachio shells, coconut shells, hazelnut shells, chestnut shells, etc., discarded cardboard boxes (Various agricultural Biomass raw materials...)
use	Pyrolysis and gasification of various agricultural biomass and other raw materials, produce biomass synthesis gas, use biomass synthesis gas to generate electricity, or apply it to heating and so on.

---
