High Speed Reliable CNC Vertical Milling Center CNC Vertical Machining Center VMC

US$10,000.00-15,000.00 1 set (MOQ)

Basic Info.

Model NO.
XH7136
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
End milling cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
X-axis travel
900mm
Y-axis travel
350mm
Z-axis travel
500mm
Distance from spindle center to column
460mm
Max. loading
300kg
Main motor power
5.5kW
Spindle speed
8000rpm
Transport Package
Poly Wood Case
Specification
Worktable 1250x360mm
Trademark
Dalian ZT Machinery
Origin
China
HS Code
8457101000
Production Capacity
30 Sets/Month

Product Description

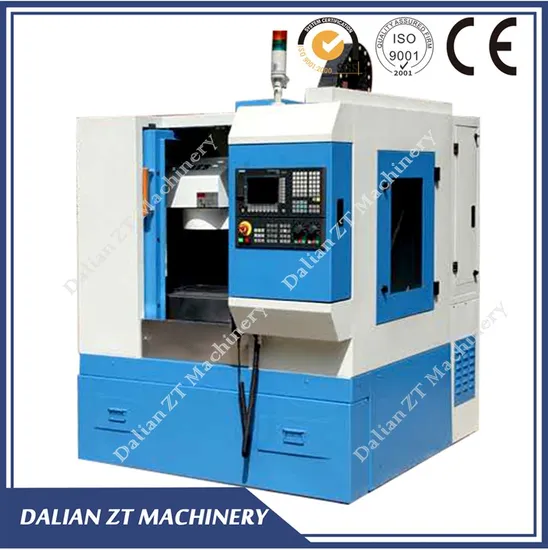

Vertical Machining Center Model XH7136:
High performance; High efficiency; High precision; High stability; Our vertical machining center can realize the functions of the majority of drilling, milling, boring and reaming in automatic rocessing cycle. It is especially for light industry, textile machinery, mould industry and spare parts processing equipment.


Item XH7136 XH7126 XH7125
X-axis travel 900mm 450mm 450mm
Y-axis travel 350mm 320mm 300mm
Z-axis travel 500mm 450mm 380mm
Distance between spindle nose to worktable 100-600mm 90-470mm 50-430mm
Distance from spindle center to column 460mm 360mm 330mm
X/Y-axis rapid transverse 10000mm/min
Z-axis rapid transverse 8000mm/min
Cutting feed 2000mm/min
Tool magazine capacity 16 12 10
Worktable area 1250x360mm 800x260mm 900x250mm
Max. loading 300kg 300kg 200kg
T-slot 3/18/80 3/14/80
Max. Spindle speed 8000rpm 1-12000rpm 1-12000rpm
Main motor power 5.5kW 3.7kW 2.2kW
Spindle taper BT40 BT40 BT30
Weight of machine 2400kg 2000kg 1400kg


Main equipment and features
No. Name Brand
1 Ball screw China famous brand
2 Spindle China famous brand
3 CNC controller Siemens or GSK
4 Oil pump
5 Working lamp
6 CNC control system Siemens 808D
7 Cylinder Taiwan
8 Flange bearings (P5)
9 Tool magazine Taiwan
10 Linear guideway Taiwan
11 Spindle motor
12 3-axis servo motor & driver Siemens
13 Contactor Schneider
14 Wiring terminal Schneider
15 Spindle bearing NSK
16 Automatic lubrication YONGJIA LUBE
