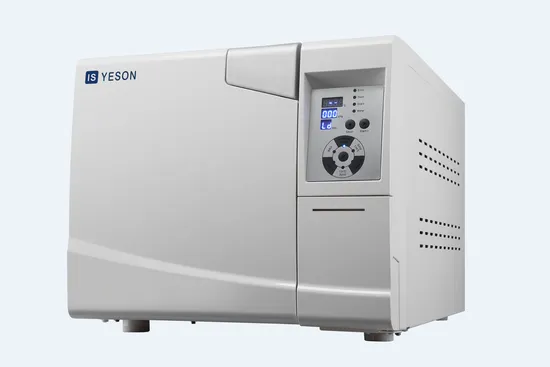

Yeson CE 23L Class B Tabletop Steam Autoclave for Sterilization

Product Description

YESON AUTOCALVE Basic Series-23L,CLASS B
A sterilizer all designs JUST for utility.
FEATURES:
1) Built-in Printer
Not occupy space.
2) Drainage Pipe Plug & Pull Design
Quickly and easily.
3) Distinctive design of water tanks
Independent closed waste water tank prevent cross infection.
Open-top fresh water tank, easy water filling and cleaning.
4) Compliance with European standards completely
5) Electronic + Mechanical locker system
6) Short circuit safety protection
7) Invisible function area
Technical Data

Power supply	220V/50Hz/2500W
Clean water tank	4.5L
Waste water tank	4.0L
Chamber size	ø250X450mm
Capacity	23L
Width*Depth*Height	503X655X433mm
Net weight	55Kg
Gross weight	65Kg
Installation size	600mm
Material of chamber	Stainless steel 304
Lock system of door	Electronic+Mechanical
Data output	Thermal printer

Preset Programs

Process	Vacuum times	sterilizing time	Sterilizing temperature	Sterilizing pressure	Vacuum persist time	Dry time
121ºC/SOLID	1 *	20min *	121ºC	110kPa		3 *
121ºC/POROUS	3 *	20min *	121ºC	110kPa		7 *
121ºC/HOLLOW	3 *	20min *	121ºC	110kPa		10 *
134ºC/SOLID	1 *	4min *	134ºC	210kPa		3 *
134ºC/PROOUS	3 *	4min *	134ºC	210kPa		7 *
134ºC/HOLLOW	3 *	4min *	134ºC	210kPa		10 *
USER DEFINED	3 *	5min *	134ºC*	210kPa		10 *
B-D TEST	3	4min	134ºC	210kPa		7
VACUUM TEST				-80kPa	15min
CLEAN PROCESS	3	5min	105ºC	20kPa		10
PRIONEN	3	19min	135ºC	210kPa		10

The data have "*" can be adjusted
ABOUT YESON NINGBO HAISHU YESON MEDICAL DEVICE CO., LTD is a high-tech company, who is engaged in the R&D, production and marketing of products of medical sterilization chain since 2005. We are aiming at being a world-class sterilization solutions supplier and committed to creating efficient disinfection space for users.
2005 66 86 YESON FOUNDED PATENTS CERTIFICATES
Our products include tabletop autoclaves from 3L to 45L, handpiece lubricating machine, fast-cutting pouch sealer, ultrasonic cleaner, etc.Relying on our strong technology , we update and develop new products every year. Our products are well sold over 80 countries all around the world till now. In 2021, our steam autoclave sale volume ranked No 1 in Chinese autoclave industry.
We have ISO13485 and CE certificates approved. In September 2021, Yeson is the main drafter,the "ZHEJIANG MADE" institution standard <Micro Tabletop Type B Steam Sterilizers> was published officially. In June 2022, the first in the industry,we acquired the "ZHEJIANG MADE" certificate.

---
