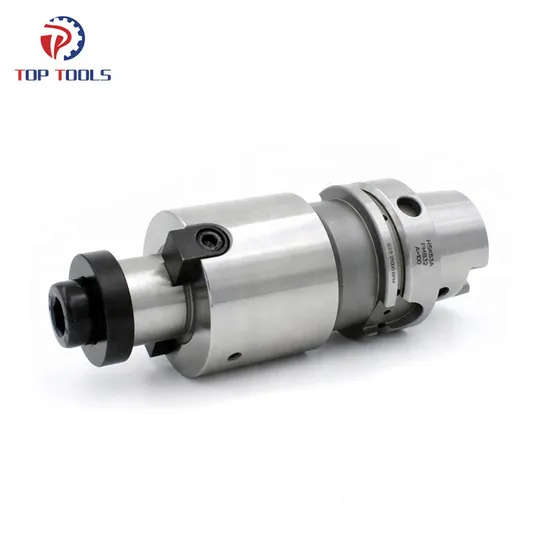

High Precision CNC Milling Machine Collet Hsk80 Fmb22 Chuck

US$40.00-100.00 1 Piece (MOQ)

Basic Info.

Model NO.
Hsk80 Fmb22 Collet Chuck
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Material
20crmnti
Standard
DIN69893
Hardness
HRC58-62
Rotating Speed
30000rpm
Usage
Mold Industry, and High-Speed Engraving Machine
Inspection
100% Inspection
Size
Full Size
Transport Package
Plastic Box
Specification
HSK80 FMB22 collet chuck
Trademark
Gerzhuo
Origin
Shandong, China (Mainland)
HS Code
8207709000
Production Capacity
1, 000, 000 Pieces/Year

Product Description

1,Material:20CrMnTi
2,Production standard:DIN69893
3,Place of origin:Made in China
Technical specification
Model d D L A
HSK50-FMB16-50 16 38 17 50
HSK50-FMB22-60 22 48 19 60
HSK50-FMB27-60 27 58 21 60
HSK50-FMB32-60 32 78 24 60
HSK63-FMB16-50 16 38 17 50
HSK63-FMB16-100 16 38 17 100
HSK63-FMB22-50 22 48 19 50
HSK63-FMB22-100 22 48 19 100
HSK63-FMB27-60 27 58 21 60
HSK63-FMB27-100 27 58 21 100
HSK63-FMB32-60 32 78 24 60
HSK63-FMB32-100 32 78 24 100
HSK63-FMB40-60 40 88 27 60
HSK63-FMB40-100 40 88 27 100
HSK80-FMB22-50 22 48 19 50
HSK80-FMB27-50 27 58 21 50
HSK80-FMB32-60 32 78 24 60
HSK80-FMB40-60 40 88 27 60
HSK100-FMB22-50 22 48 19 50
HSK100-FMB27-50 27 68 21 50
HSK100-FMB32-50 32 78 24 50
HSK100-FMB40-60 40 88 27 60
HSK100-FMB60-70 60 130 40 70
