Product Details
Product Description
Product Description

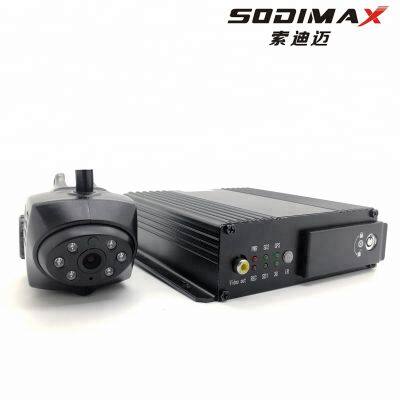

Mobile CCTV DVR Features
1）. Standard H.264 compression format ensures high rate, less storage space and clear.
2）. SD card support, faster recording speed and easy installation.
3）. Advanced PCB layout&design and reliable SMT processing
4）. Wide voltage range of 8 - 36 V
5）. 5V/0.5A for Input, 12V/2A for output, compatible and easy installation
6）. 4 Alarm in, 1 Alarm out. 4 Video in, 1 Video out. 4 Audio in, 1 Audio out. RS485/232 Support.
7）. Professional management platform and PLAY software
8）. Support Brake alarm, Reverse alarm, Motion detect, Door opening alarm, CMS platform, Customized Player.
9）. Support Geo fence, Location, Speed alarm, G-sensor etc.
10). Support oil sensor, Fuel cut, Power cut, SOS alarm, Alarm button, Online tracking, Live talkback, Live surveillance, Live simultaneous storage, Dispatching system, Camera rotation, PTZ cloud control, SMS function, CMS platform, iOS&Android client(for Apple and Android phone), Wireless WIFI, Remote control and etc.
11). H.264 video code compression, dual stream output; SD Mobile DVR Manual V6.0 9
12). G.726 audio compression format, 4-channel audio input, 1-channel audio output.
13). Power-off protection in emergency, adopting special UPS technology which ensures the device to work for 3-5 seconds after the external power supply is cut, thus ensure complete video data and avoid file damage;
14). Real-time local recording, multiple formats for selection, supporting full screen of single channel or multi-window stitching upon accidents;
15). Switch signal interface, 6-channel alarm input, 2-channel alarm output;
16). PTZ control：Multiple recording modes: record upon startup, timed recording and triggered recording;
17). Special file system:：can be played with Special playback software, supporting 1-channel or 4-channel or 8-channel synchronous playback;
18). Data storage： supporting 1 SD card with the capacity up to 512G;
19). Wide voltage design： 9-36V DC wide voltage input, suitable for various vehicles; DC 12V/2.5A output;
20). Rapid startup, capable of entering normal working mode within 25 seconds after startup; supporting on/off with key switch, timed on/off and delayed on/off, etc.;
Our Client Platform
Our service
Server --- First year is free. We can also help to build up your own Server. Welcome to talk.
CMS Platform --- iFAR is our brand name of softwares. Copyright protection. Free platform.
Player --- Free Player.
Software --- iFAR is free. Welcome OEM customized project.
Technology support --- We provide Installation guiding, Problem solving, Remote upgrading etc.
Warranty --- We provide 12 months quality warranty based on normal use.
FAQ
1. Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2. Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3. Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4. Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
>>
