Continuous Liquid Level Tester Oil Well

Product Description

Continuous liquid level tester oil well
Overview:

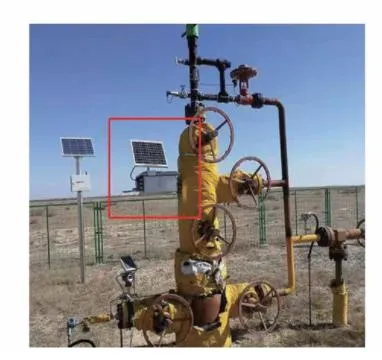

The continuous liquid level tester is an intelligent testing equipment that is installed at the casing mouth of an oil well for a long time and automatically tests according to production needs. At the same time, the test results are connected to the four modernizations production command system through on-site RTU, providing data support for the formulation and adjustment of production systems.
The continuous liquid level tester uses the principle of infrasonic echo logging to conduct liquid level depth testing. By releasing a small amount of gas in the annular space, the gas in the annular space at the wellhead is instantly subjected to an expansion shock wave. The infrasonic component in the shock wave propagates down the wellbore along the annular space. When encountering the reflection sound wave pulse generated by the coupling and gas-liquid interface, it is converted into an electrical signal on the micro sound transducer. After digital processing such as signal amplification, filtering, A/D conversion, etc. through electronic circuits, it presents a recognizable liquid level curve and automatically calculates the liquid level depth.
Technical Features: Suitable for oil wells with a casing pressure of 0-8MPa, high pressure resistance, and a wide range of applications; Special sound emitting device, with no noise or high voltage impact during testing, has a small impact on the surrounding environment. The self assembling system is connected to the supporting four modernizations system with multiple filtering and protection measures, making it more stable; Meet the needs of different types of wellhead usage Product Parameters

Equipment withstand voltage	8MPa
Test depth	0-3000m
Testing accuracy	isoil 2%

---
