Timing Belt Drive System Plastic Film High Speed 6 Colors Flexo Printing Machine

Product Description

Timing Belt Drive System Plastic Film High Speed Flexo 6 colors Printing Machine
Product Description

Characteristic
1. The machine introduction & absorption of European technology / process manufacturing, supporting / full functional, has the following features:
2. After mounting the plate and registration, no longer need registration, improve yield;
3. Replacing 1 set of Plate Roller (unloaded 6PCS old roller, installed six new roller after tightening), only 20 Minute registration can be done by printing;
4. The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
5. Maximum production machine speed up 200m/min, registration accuracy ±0.15mm,
6. The overlay accuracy does not change during lifting running speed up or down.
7. When machine stop, Tension can be maintained, the substrate is not deviation shift;
8. The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield;
9. With structural precision, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.
Printing Machine Process:
Single unwind system→ Automatic Tension→4color flexo printing(4color)→Dry system after printing finished →Surface rewind system
Main Parameter:

Printing material	PE,Plastic film, Paper, Woven
Machine Colors	2-8 Color
Max. printing material width	1050mm
Max. printing width	960mm
Max. Printing length(repeat)	7.5"~40"(190mm~1000mm)
Max. Mechanical speed	150m/min
Max. Printing speed	30-120m/min(one-side printing) 30-80m/min (double-side printing)
Register Precision	Crosswise: ±0.20mm; Lengthwise: ±0.20mm
Thickness of Plate	1.14mm,1.7mm,2.28mm,2.84mm
1 Set of Printing Cylinder on this machine	400mm (8Pcs)
Machine overall dimensions(L *W*H)	7.2m*2.4m*4.0m
Total machine power	70Kw
Power	Voltage 380V, 3 PH, 50 Hz (or at client's require)

Detailed Photos

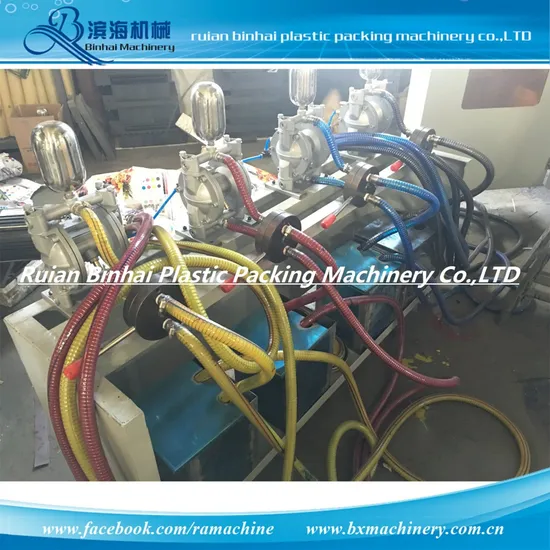

Pictures of 6 color flexo printing machine
Bag Samples
samples of flexo printing machine
Certifications
Packaging & Shipping
THE END OF FLEXO PRINTING MACHINE

---
