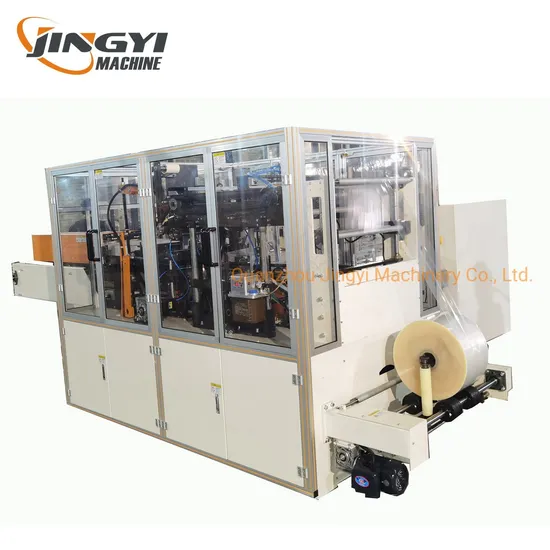

100 Packs/Min Fully Automatic Napkin Paper Packaging Machine

Product Description

100 packs/min Fully Automatic napkin paper packaging machine
Main technicial parameter: On base of changing some spare parts,the suitable range of packing specification:

LENGTH	150-230MM
WIDTH	150-200MM
HEIGHT	50-150MM

Packing material	CPP
The thickness of packing film	0.04mm---0.05 mm
The max outer diameter of packing film	¢450mm
The roll core diameter of packing film	75mm---78mm
Stable packing speed (P/min)	80-100 bags/min
Overall size of the machine	3560mm*6000mm*1960mm
Power(the power of the main motor)	9KW

Power of main motor:1.5KW Power of feeding paper servo motor:0.75KW Power of middle conveying servo motor:0.75KW Power of rewinding motor:0.55KW Power of feeding material motor:0.37KW Power of managerment material motor:0.18KW Power of feeding material motor:0.04KW Power of lengthen feeding material motor:0.18KW Total power of heating tube:4.6KW; power supply: 380V/50HZ (the power cord of out connecting should be offered by the buyer) weight of machine: about 4T; compressed air (mpa):pressure 0.5---0.8(the gas source and out connecting trachea needed should be offered by buyer); machine noise:≤78Db; Performance and features of the tender material: the color of the whole machine is "pearl white"(can be the color customers require); delay 5 second to boot after start the main machine,to make sure the safety of workers; the running of whole machine is controlled by board control machine; the wiring of the whole machine is neat,power and signal cable connector are not exposed; with warning tone tips when start the machine or there is fault,it will stop automatically when there is fault; with buffer management material belt; packing sealing is smooth,the sealing surface is smooth and no serious wrinkles and flash;the gusseted folding is beautiful;heat sealing is fine; the cutting of film adopts roller knife method,connect with main driving,the blade is alloy steel. the conveying of roller film adopts servo motor,controlled by board control equipment;the positioning of pictures of film printing is accurate; with the function of automatically stop feeding film when there is no paper,namely that there is no film when no paper,and there is film when with paper; the parts of main machine which touch the paper adopts stainless steel(management material unit uses PVC conveying belt); adopts high-precision electric sensor to track and minitor the system; automatically tracking and minitoring system of production situation and fault,and with real-time display on the touch screen,to achieve interactive operation; with monitor controlling when there is overlapping or even packeting on the stacker; the monitoring of unwinding of film and situation of conveying; the monitoring of conveying situation of stacker; the running speed of main motor is controlled by inverter; adopts the center lubricating system; intelligent temperature controlling unit,to control the temperature,can be adjusted; the virtual tangent of tearing on top of packing bag,adopts cylinder with toothed knife automatic stamping incision,the position of tearing virtual tangent is accurate; the speed is stable,the equipment runs stablely ,there is no abnormal vibration,abnormal temperature rising and abnormal noise; can support running safety device for the whole machine(special); can support the printing of production date: an support using coders; can support using stenciling; Our workshop:
About Package and shipping:
About Us:
Quanzhou Jingyi Machinery Co.,ltd is professional manufacturer for paper machines:
1) Toilet Paper Machine and kitchen towel machine (1.2m--2.8m width of jumbo roll);
2) Facial Tissue Machine (2-14 lanes);
3) Napkin Paper machine;
4) Hand Towel Paper Machine;
5) Handkerchief Paper Machine;
6) All kinds of Paper Cutting and Packing Machine.
Our Service:
Pre-Sale Services: We will reply your inquiy within 24 hours. According to your actual situation and budget, we will provide professional consultation and best solution with strong technical support.
After-Sales Service:
1.We will send the engineer or technician to your factory for installation, debugging and training the workers. Also welcome you come to our factory for learning the machine operation.
2.Warranty: One year guarantee, service for ever. Our technical team will give you 100% rest assured global presence service if necessary.
3.Wearing parts of machine will be sent to customers with a good preferential price.
Contact Us:
Quanzhou Jingyi Machinery Co.,ltd
Add: Jiangnan Street,Licheng District, Quanzhou,Fujian
Name: Martin Wu

---
