Forestry Machinery Industrial Drum Wood Shredder Machine

Product Description

Product Description

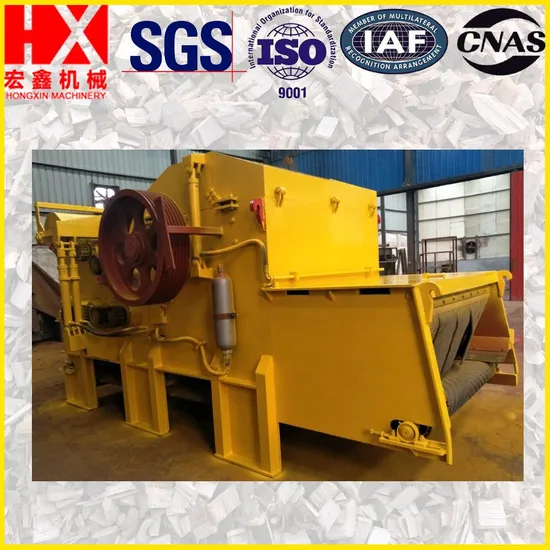

Drum wood chipper is a specialized machine for producing wood chips in wood factory, and widely used for preparing raw material in chipboard plant, fiber board plant and paper-making plant.
Raw material of Drum wood chipper are mainly undersized log, wood cutting residue (branch, twig) and wood processing residue (slab, batten, wood core, and waste veneer), as well as non-wood material (such as waste of flax, cotton stalk, reed and bamboo.)
Product Structure
Drum wood chipper is composed of engine base, knife roller, upper and below feeding mechanism, feeding conveying device, discharging conveying device, hydraulic buffer system and electrical control system. Detailed Photos
Product Parameters

Model	HX2110	HX8210	HX2113	HX6213
Rotor diameter (mm)	1000	1000	1300	1300
Feed roller qty (piece)	4+4	4+4	4+4	4+4
Max wood diameter (mm)	300	500	380	500
Input size (mm)	1050x700	1400x600	1000x 600	1480x550
Blade qty (piece)	8	8	8	8
Bottom knife quantity (piece)	2	2	2	2
Main motor power (kw)	200	250	315	315
Feed conveyor length (m)	5	5	5	5
Discharge conveyor length (m)	10	10	10	10
Capacity (tph)	10-15	15-25	20-30	20-40

Machine working site
Shipment
Output chips photo
Company Profile
Shandong Hongxin Machinery Co., Ltd
Our company is a professional manufacturer of log debarker, wood chipper, horizontal grinder, tub grinder, hammer mill and wood pellet mill.
Our company has introduced a series of advanced equipment including CNC Lathe, CNC Milling machine, Planer, Drilling machine, Sawing machine, CNC Boring machine, Balancing machine, Coiling machine. Meanwhile, we have obtained ISO 9001, CE certificates and many patents.
With a complete understanding of the requirements of both our customer and the industry, we offer defect-free equipment and services.
Certifications

---
