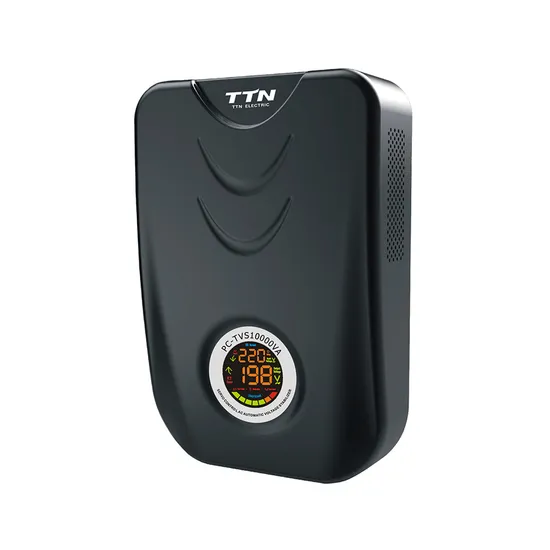

High Efficiency PC-TM10kVA Power Voltage Regulators/Stabilizers with LED Display

Product Description

High Efficiency PC-TM10KVA Power Voltage Regulators/Stabilizers with LED Display
Advantages: 1.AC Automatic Voltage Stabilizer
2.LED Display:Display various protection data
3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect
4.Wide input voltage range
5.Efficiency more than 90%
6.No additional waveform distortion
Specifications:
1.Model:PC-TM10000VA
2.Input Voltage:AC150-270V;135-270V;105-270V;80-270V
3.Output Voltage:220v±10% adjustable
4.Frequency:50HZ/60HZ
5.Phase: Single Phase
6.Packing Size:51.8*39.0*27.0cm
7.G.W.:20.65kgs
Application:
1.Computer
2.Test equipment
3.Lighting equipment
4.Alarm and security system
5.X-ray equipment
6.Medical equipment
7.Duplicator
8.Boadcasting equipment
9.Numeric control machine tool
10.Industrial robot
11.Hi-Fi equipment

MODEL	PC-TM3000VA	PC-TM5000VA	PC-TM8000VA	PC-TM10000VA
	PC-TM12000VA
TECHNOLOGY	Relay Control System+Micro computer ptogramed control
LED DISPLAY	Info	Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection
	Protection	Over voltage	Output Voltage≥243±4V
		Low Voltage	Output Voltage≤188±4v
		Over Loading	More than 120%
		Over Temperture	120ºC±10ºC
		Delay Time	Long time(255 seconds)/Short time(5 seconds)
		Circuit Breaker	Regulator/Bypass
	Language	English/Russian/Chinese
INPUT VOLTAGE	AC150-270V;135-270V;105-270V;80-270V
OUTPUT VOLTAGE	220V±10% adjustable
FREQUENCY	50HZ/60HZ
PHASE	Single Phase
EFFICIENCY	≥90%
AMBIENT TEMPERATURE	-15ºC-45ºC
RELATIVE HUMIDITY	<95%
WAVEFORM DISTORTION	No additional wave from distortion
INSULATING RESISTANCE	Normally more than 2MΩ
SPECIFICATIONS
POWER	3000VA	5000VA	8000VA	10000VA
PACKING SIZE(CM)	43.2*31.9*39.9	45.7*34.9*43.9	45.7*34.9*43.9	51.8*39.0*27.0
PACKING(pcs)	2	2	2	1
G.M(kgs)	21.59	28.16	35.50	20.65
POWER	12000VA
PACKING SIZE(CM)	51.8*39.0*27.0
PACKING(pcs)	1
G.M(kgs)	22.55

---
