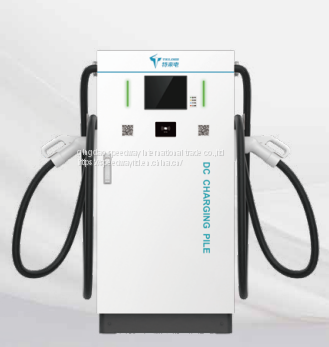

Product Details
Product Description
Product Description
High compatibility
Compatible with new & old GBT standard vehicles.
Flexible option for card reader, 24V Auxiliary power supply.
Support high power dual connector simultaneous charging
Energy-efficient
Standby power consumption of whole system less than 25W.
Peak efficiency up to 95%.
Sleep mode 1 to 60 minutes settable
Safe and reliable
Core component filled with silica gel.
Failure rate reduction of 90%.
Comprehensive security protection and fault alarm capabilities.
Low noise design, adjustable fan speed
Friendly interaction
4 indicator status display.
UI interface optimization, improve visibility under strong light.
Upper outgoing and soft charging cable, user friendly design
| Model | TCDZ-DC1.00/40 | TCDZ-DC1.00/80 |
| Power supply | 3P+N+PE |
| Rated voltage | 380VAC±15% |
| Frequency | 50/60Hz |
| Power system | TN-S |
| Output voltage | 50-1000 V DC(300~1000V Constant power) |
| Rated power | 40kW | 80kW |
| Max current | 125A |
| Charge connector | GB/t *1 | GB/t *1 |
| Cable length | 4m |
| Display screen | 8 inch LCD touch screen |
| Language | English/Chinese |
| LED indicator | Green/Yellow/Blue/Red |
| Start mode | Local start: Plug & charge/Password | Network start: APP/VIN |
| Option | Card reader/24V APS |
| Emergency stop | Yes |
| Auxiliary power supply | 12v |
| Network interface | 4G/Etherne |
| Protocol | OCPP1.6J |
| Protection level | IP55/IK10 (not including the screen) |
| Electrical protection | Input over current protection, Ground protection, Surge
protection, Input over/under voltage protection, Output
over/under voltage protection, Over temperature protection,
Input/output short-circuit protection, etc. |
| THDi | ≤5% |
| Power factor | ≥0.99 |
| Efficiency | ≥95%（peak） |
| Standby power consumption | ≤25W |
| Work humidity | 5%~95% |
| Work altitude | ≤2000m |
| Work temperature | -40~65 ℃(-20~50℃ Full load |
| Noise level | ≤65dB |
| Installation | Floor-mounting |
| Product dimension | W650*D320*H1350 mm |
| Net weight | 80kg(Not including charging modules) |
| External package | Wooden case |
| Package dimension | W940mm*D480mm*H1500mm |
>>
