What is aluminum braided straps？
Aluminum braided straps are sic heating element accessories.They are used for connecting silicon carbide heater rods or conducting electricity.
Aluminum flexible braided straps is made of multiple strands of highly conductive thin aluminum wire first twisted into a unit, then braided and flattened, flexible and high conductivity.The main role of the aluminum braided strap is to connect the external power supply and the sic heating element.
Why use aluminum braided straps?
The power carried by the aluminum braided strap is determined by the number of strands and the thickness of the aluminum wire, it is flexible.
Multistrand and fine aluminium flexible braided strap can pass through a larger current and effectively lower the temperature, achieve good heat dissipation effect, and finally prolong the service life.

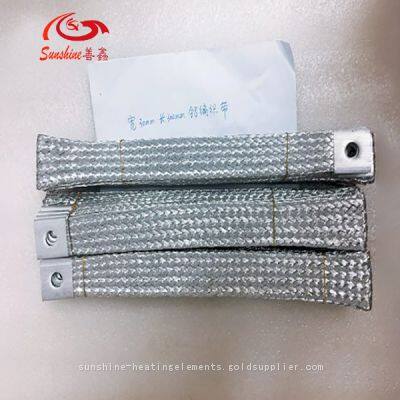

Aluminum Flexible Flexible Braided Straps Detail Photo
Types of Aluminum braided straps
There are two commonly used types aluminium braided straps, they are single hole (one end has hole) and double holes (two ends have holes).
Single-Hole Aluminum-Braided-Straps
Two-Holes Aluminum-Braided-Straps
Single hole aluminum braided straps
Single hole aluminum braided straps for connecting binding post to elements.
Single hole aluminum flexible braided straps is held in place by stainless steel spring clamps, braided aluminum terminal straps in 25, 50, 100, and 200 amperage ratings are available.
Single Hole Aluminum Braided Straps Length Measurement Schematic
Single hole aluminum braided straps parameter table| item | Rated current | Width | Hold diameter |
| Single hole aluminum braided straps | 25Amp | 13mm | 7mm |
| 50Amp | 17mm | 10mm |
| 100Amp | 33mm | 14mm |
| 200Amp | 33mm | 14mm |
| 400Amp | 35mm | 18mm |
Two holes aluminum braided straps
Two holes aluminum braided straps are for connecting binding post to binding post.
Two holes aluminum flexible braided straps can held in place by stainless steel spring clamps, braided aluminum terminal straps in 25, 50, 100, and 200 amperage ratings are available.
Two Holes Aluminum Braided Straps Length Measurement Schematic
