Roll to Roll Central Drum Central Impression Ci Flexo Printing Machine Plastic Film Printing Machine Paper Bag Paper Cup Flexo Flexographic Printer Machine

Product Description

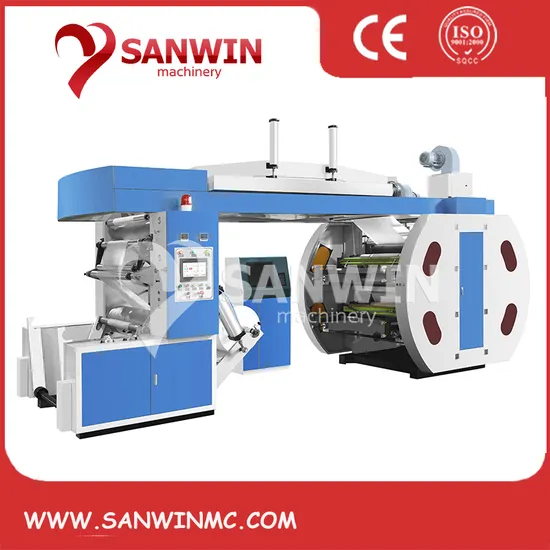

Economic Central Drum Flexographic/Flexo Printing Machine Paper printed
Feature
1.Method:Central impression for better color registration. With the central impression configuration, The material to be printed is supported by the cylinder, Greatly improving color register, Especially with extensible materials.
2.Structure:Wherever possible, parts are commonized for availability, Wear-resisting design.
3.Dryer:Hot wind dryer, automatic temperature controller, Separated heat source.
4.Doctor Blade:Chambered assembly for high-speed printing.
5.Transmission:High performance taiwan motor with digital frequency inverter and encoder buttons are placed on both control chassis and body for operators' convenience.
6.Rewind:High performance Taiwan motor with diaphragm air cylinder for stable web tension.
7.Gearing of Printing Cylinder: 5mm.
Main Technical Parameter:

1	Max machine speed:	150m/min
2	Max. printing speed:	One-side printing: 120m/min (depends on material and ink feature)
3	Max. material width:	600mm/800mm/1000mm/1200mm etc
4	Max. printing width:	550mm/750mm/950mm/1150mm etc
5	Max. material diameter:	1000mm
6	Printing length:	300-800mm
7	Total machine power:	50KW
8	Total machine weight:	About 5T
9	Machine overall dimensions:	6.0m(L)×2.2m(W)×3.4m(H)
10	Printing way:	Full width 4/6 color on one side
11	Printing plate thickness	Photopolymer plate 1.7mm or2.84mm (at client's require)
12	Printing cylinder install in machine:	400mm (at client's require)
13	Ceramic anilox roller:	250-800LPI, 1 color/1 pcs, suit to color overlapping printing (at client's require)

Optional Spare part:
1. ceramic anilox roller ( japan murata)
2. printing cylinder
3. enclosed chamber doctor blade : improve machine speed to 120m/min
4. monitor inspect device
5. corona treatment (china and taiwan brand)
6. seal rubber for chamber
7. plate mounting machine
8. anilox roller cleaning machine
9. plate making machine
10.register color by motor ( left and right, up and down)
11. crane: manual or motor 2 kinds
etc.
1.Unwinding Part(Auto Load Material with Air Shaft)
2.Printing cylinder+Ceramic anilox roller
3.Closed doctor blade
4.Touch Screen +PLC Control
5.Video camera
6.Central Drum
FAQ:
1.Q:Are you machinery factory or trading company?
A:Yes,We are machinery factory,and we are professional manufacturer for 25 years
and focus on bag making machine,printing machine,film blowing machine,etc.
and we also have one trading company
2.Q:Where is your factory Located? How can we visit it?
A:Our factory is located in Ruian City,Zhejiang Province,China
From SHANGHAI City by flight is 40minutes,by train is 4hours.
From GUANGZHOU City by flight is 2hours.
3.Q:How many years guarantee?
A:In usually,we have given customer for one years guarantee.
4.Q:What is your delivery time?
A:About 30-40 days
5.Q:What`s the payment method?
A:We can accept T/T,L/C,Western Union,Moneygram, Etc.
6.What is your after-sale service ?
A:We will send our professional technician to install and test the machine.

---
