Top Quality 6 Ton Small Hydraulic Crawler Excavator Swe60f

Product Description

Product Description

Operation Weight		6010 kg
Bucket Capacity		0.23 m ³
Main performance	Travel speed(H/L)	4.2/2.2 km/h
	Rotating speed	10 r/min
	Gradeability	35°
	Ground pressure	32.5 kPa
	Bucket digging force	48.3 kN
	Arm digging force	32.5 kN
	Maximum traction	50.5 kN

Mini excavator 6 ton hydraulic crawler excavators SWE60F with EPA CE
SWE60F hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling,trenching, crushing, drilling, pinching, lifting, etc.It is widely used in the construction and production of hydropower, transportation, municipal, garden, farmland transformation,oil pipelines, etc.1.More energy-conservation and environmental protectionBy adopting Yan-mar engine meeting national stage III emission standard, mechanical fuel injection pump has reliable performance.
With compact size, the maintenance is convenient. Enough low torque reserve can ensure strong power. High reliability can reduce the maintenance cost.2.More efficient returnRear-end swing radius adopts tailless design, which can ensure that the tail part will not collide with obstacles under narrow working conditions.
Deflectable working device can deflect to left and right at 75° and 50° separately, which can achieve compound action with superstructure.Through swing cooperation with superstructure, digging operation parallel to the wall surface will be achieved and various kinds of working conditions can be coped with easily.3.More reliable and durablePartial strengthen the parts with great stress on boom and arm, and meanwhile adjust the structure to disperse the stress, which makes the life longer. With standard configured new bucket, the depth of bucket is reduced and unloading material will be faster and easier.

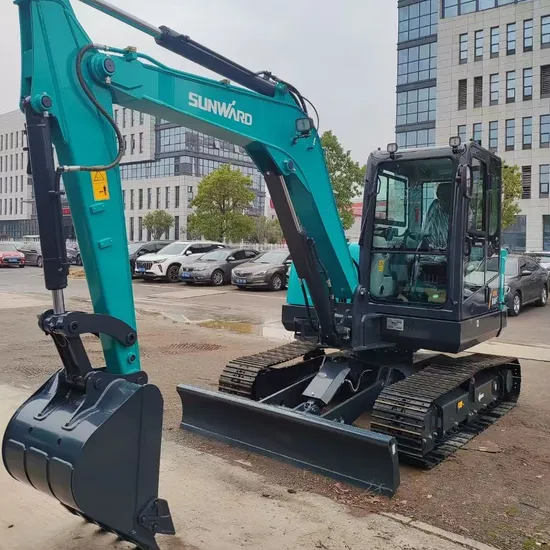

Detailed Photos
Product Parameters

Operation Weight		6010 kg
Bucket Capacity		0.23 m ³
Main performance	Travel speed(H/L)	4.2/2.2 km/h
	Rotating speed	10 r/min
	Gradeability	35°
	Ground pressure	32.5 kPa
	Bucket digging force	48.3 kN
	Arm digging force	32.5 kN
	Maximum traction	50.5 kN
Hydraulic system	Rated flow of main pump	151.2 L/min
	Pressure of prime valve	24.5 Mpa
	Pressure of travel system	22 Mpa
	Pressure of swing system	21 Mpa
	Pressure of pilot system	3.5 Mpa
Oil capacity	Fuel tank capacity	110 L
	Hydraulic tank capacity	85 L
	Engine oil capacity	12 L
Appearance size	Overall dimensions(L*W*H)	5860×1920×2585 mm
	Width of platform	1780mm
	Width of crawler	400 mm
	Clearance under counterweight	700 mm
	Min. ground clearance	385 mm
	Min. tail swing radius	2890 mm
Working scope	Max. digging height	5630 mm
	Max. dumping height	3945 mm
	Max. digging depth	3830 mm
	Max. vertical wall digging depth	2680 mm
	Max. digging reach	6130 mm
	Min. swing radius	2460 mm
Standard	Boom length	3000 mm
	Arm length	1600 mm
	Bucket Capacity	0.23 m ³
