| BASIC INFO | |
| Model No. | WinPad W122J |
| Operating System | Windows 11 Pro |
| Dimension | 319.6*216*24.3mm |
| Weight | 1620g (include battery) |
| Color | Black |
| Language | Multi-language |
| HARDWARE | |
| Display | 12.2 inch 16:10 Corning Gorilla IPS capacitive screen, 1920*1200px, 650cd/m2 |
| Processor | Intel JASPER LAKE N5100 quad core, 2.8GHz; GPU: Intel HD Graphics Gen 11 LP |
| RAM | 8GB RAM |
| ROM | 128GB ROM, support Micro SD card up to 512GB maximally |
| Camera | Double cameras: rear 8.0MP AF with flashlight, front 5.0MP |
| Battery | Removable 7.4V/6300mAh+ built-in 7.4V/1000mAh Li-Polymer battery |
| G-sensor | Support |
| Speaker | Embedded 8Ω/1W waterproof speaker*2 |
| LED Indicator | RGB |
| Key | Power key*1, Volume key+/-*1, Home key*1, P1/P2/F custom key*3 |
| NETWORK & CONNECTIVITY | |
| Network Bands | 2G GSM 900/1800MHz |
| 3G WCDMA 900/2100MHz | |
| 4G FDD-LTE B1/B3/B7/B8/B20/B28A | |
| WiFi | IEEE 802.11a/b/g/n/ac, support 2.4G/5.8GHz dual band WiFi |
| BT | V5.0(BLE), transmission distance: up to 10 meters |
| GNSS | Support GPS/Beidou/GLONASS |
| I/O INTERFACES | |
| TF card slot | *1 |
| SIM slot | *1 |
| Reset Hole | *1 |
| USB Type-A | *3 (USB2.0*1, USB3.0*2) |
| USB Type-C 3.0 | *1 |
| 3.5mm audio jack | *1 |
| DC-IN | *1 |
| Mini HD-MI 1.4a | *1 |
| RJ45 Port | *1 (10/100/1000Mbps) |
| RS232 | *1 |
| RS485 | *1 |
| 12pin Pogo Pin | *1 |
| OPTIONAL FEATURES | |
| NFC | Optional (NXP300) |
| 2D barcode scanning | Optional (Honeywell N3680) |
| 5G Module | Optional |
| RELIABILITY | |
| Waterproof | IP65/MIL-STD-810G |
| Drop-proof | 1.22m drop |
| Temperature range | Operating: '-20 °C to 60 °C, storage: '-30 °C to 70 °C |
| Humidity range | 95% Non-Condensing |
| ACCESSORIES | |
| Power Adaptor (19V/3.42A) | *1 |
| Hand-strap | *1 |
| Charging dock | Optional |
| Back-strap | Optional |
| Keyboard | Optional |

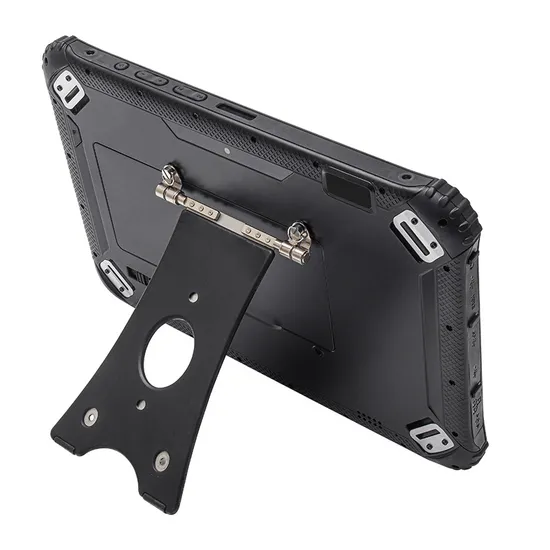

| Desktop Stand | Optional |
| Vehicle Mount | Optional |
| Stylus | Optional |
| BASIC INFO | |
| Model No. | WinPad V10J |
| Operating System | Windows 11 PRO |
| Dimension | 264.5*184.1*23mm |
| Weight | 834g (include battery) |
| Color | Black |
| Language | Multi-language |
| HARDWARE | |
| Display | 10.1 inch 16:10 tempered glass IPS capacitive screen, 1280*800px, 700cd/m2 |
| Processor | Intel JASPER LAKE N5100 quad core, 2.8GHz; GPU: Intel HD Graphics Gen 11 LP |
| RAM | 8GB RAM |
| ROM | 128GB ROM (EMMC), support Micro SD card up to 512GB maximally |
| Speaker | Embedded 8Ω/1.5W waterproof speaker |
| LED Indicator | RGB |
| Key | Power key*1, Volume key+/-*1, custom key*4 |
| NETWORK & CONNECTIVITY | |
| WiFi | IEEE 802.11a/b/g/n/ac, support 2.4G/5.8GHz dual band WiFi |
| BT | V5.0 (BLE), transmission distance: up to 10 meters |
| GNSS | Built-in Neo-7 module, support GPS/Beidou/GLONASS |
| I/O INTERFACES | |
| SIM slot | *1 |
| USB Type-A 3.0 | *1 |
| DC-IN | *1 |
| RJ45 Port | *1 (10/100/1000Mbps) |
| RS232 | *1 |
| RS485 | *1 |
| OPTIONAL FEATURES | |
| Battery | Optional (7.4V/1000mAh Li-Polymer battery) |
| 4G Module | Optional |
| NFC | Optional (NXP300) |
| RELIABILITY | |
| Waterproof | IP65 |
| Temperature range | Operating: '-20 °C to 60 °C, storage: '-30 °C to 70 °C |
| Humidity range | 95% Non-Condensing |
| ACCESSORIES | |
| WiFi rod antenna | *1 |
| GPS rod antenna | *1 |
| Power adaptor cable | *1 |
| Power adaptor | Optional |
| Car charger | Optional |
| Wide voltage module | Optional |
| VESA | Optional |
| BASIC INFO | |
| Model No. | WinPad W109 |
| Operating system | Windows 10 home (Win 10 pro, Win 10 IOT optional) |
| Dimension | 277.48*182.74*21.5mm |
| Weight | 1155g |
| Material | PC+TPU |
| Color | Black (can be customized) |
| Language | Multi-language |
| HARDWARE | |
| Display | 10.1 inch Corning Gorilla III IPS capacitive touch screen, 1280*800px, 450nits |
| Processor | Intel Cherry Trail Z8350 quad core, 1.44GHz ~ 1.92GHz; GPU: Intel HD Graphics Gen8 |
| RAM | 4GB RAM |
| ROM | 64GB ROM (32GB/128GB ROM optional), support TF card up to 256GB maximally |
| Camera | Rear camera: 5MP; Front camera: 2MP |
| Battery | Removable 3.8V/8500mAh Li-ion battery |
| Sensor | Gravity sensor |
| Speaker | *2, 1.2W/8Ω |
| Receiver | *1 |
| Mic | *2 |
| Keys | Power key, Volume+/-, P-Key, F-Key |
| Indicator light | *1 |
| NETWORK & CONNECTIVITY | |
| Bands | 2G: GSM 900/1800MHz |
| 3G: WCDMA 850/900/2100MHz | |
| 4G: FDD-LTE B1/B3/B5/B7/B8/B20, TDD-LTE B38/B40/B41 | |
| WiFi | IEEE 802.11a/b/g/n/ac, support 2.4G/5.8G dual-band WiFi |
| BT | V4.0(BLE), ~10 meter |
| GNSS | Built-in U-blox M7N module, support GPS/BDS |
| I/O INTERFACES | |
| Micro SIM Slot | *1 |
| TF Card slot | *1 |
| USB Type-C 2.0 | *1, Support OTG |
| USB Type-A 2.0 | *1 |
| RJ45 Ethernet Port | *1, 100Mbps |
| RS232 | *1 |
| DC-IN | *1 |
| Mini HD-MI | *1 |
| 3.5mm Audio Jack | *1 |
| Pogo Pin | *1 |
| CONINVERS | RS232/USB/DC5V/CAN BUS optional |
| OPTIONAL FUNCTIONS | |
| NFC | 13.56MHz, Support: 14443A/14443B/15693 |
| UHF RFID | PR9200, Read distance: 1.5m-3m; Read distance 2: 5m-8m |
| ID Card Reader | Support reading 2th Generation ID card |
| Fingerprint | 1: Ordinary industrial fingerprint 2: Fingerprint authentication by the Ministry of Public Security 3: FBI certified fingerprint |
| 1D barcode scanner | Zebra SE655 |
| 2D barcode scanner | Zebra SE2707 |
| Screen | 800nits(1920*1200px),1000nits(1280*800px),Wet hand touch, Glove touch, Active/passive capacitor pen, AG+AF Coating, AR Coating |
| RELIABILITY | |
| Waterproof | IP67 |
| Drop-proof | 1.2M,Cement floor |
| Temperature range | Operating: -20ºC~60ºC Storage: -30ºC~70ºC |
| ACCESSORIES | |
| Charger(5V/3A) | *1 |
| User Manual | *1 |
| Hand strap | Optional |
| Mounted bracket | Optional |
| Standby Battery | Optional |
| Docking | Optional |
| Type-C Cable | Optional |
| OTG Cable | Optional |
