Vtc80 CNC Vertical Lathe High Speed and High Torque Suitable for CNC Machine Tools for Engineering Machinery Processing

Product Description

Company Profile
* * 24-hour online service at any time
* * 24-month warranty
* * Support ODM OEM
* * Provide free workpiece processing test
* * Provide a full range of solutions for machining projects
* * Pass strict quality control and multiple testing processes
* * Trade with customers in more than 150 countries around the world
* * Can complete customs clearance procedures in various countries and provide customs clearance information

Product Description

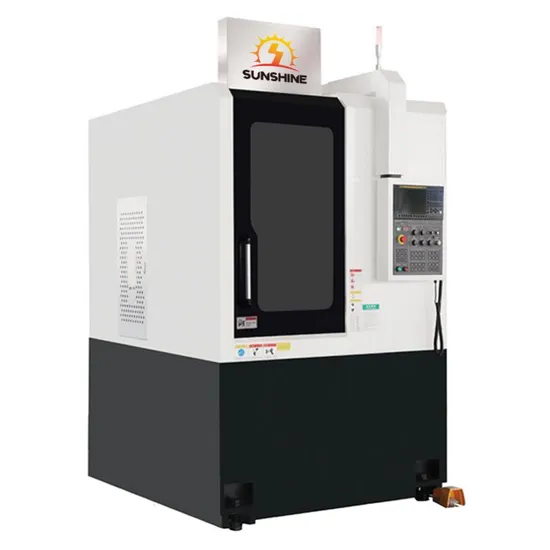

VTC80
VTC80 CNC vertical lathe high speed and high torque suitable for CNC machine tools for engineering machinery processing

Application scope of CNC vertical lathe:
CNC vertical lathes are used in aerospace, automobile, energy, heavy machinery, shipbuilding, molds, general machinery, electronics and other fields due to their high precision and high efficiency, meeting the processing needs of complex and high-precision parts.

1. Aerospace
Parts processing: used to manufacture high-precision parts such as engine housings, turbine discs, blades, etc.
Material processing: suitable for difficult-to-process materials such as aluminum alloys, titanium alloys, and high-temperature alloys.
2. Automobile manufacturing
Engine parts: processing crankshafts, camshafts, cylinder blocks, etc.
Transmission system: manufacturing gearbox housings, gears, etc.
3. Energy industry
Wind power equipment: processing large parts such as wind power main shafts and gearboxes.
Nuclear power equipment: manufacturing reactor pressure vessels, steam generators, etc.
4. Heavy machinery
Large parts: processing rollers, turbine runners, large bearings, etc.
Engineering machinery: manufacturing key parts of equipment such as excavators and bulldozers.
5. Shipbuilding
Marine engines: processing crankshafts, cylinder blocks, etc.
Propulsion system: manufacturing propellers, shafting, etc.
6. Mold manufacturing
Large molds: used to process injection molds, die-casting molds, etc.
Precision molds: manufacturing molds with high precision and complex shapes.
Rough and fine integrationVertical heavy cutting
Product Parameters

Specification		unit	VTC70	VTC80A	VTC100A	Remark
Stroke	X axis	mm	700	670	850
	Z axis	mm	0-850	170-1020	0-1000
Processing capacity	Maximum rotation diameter	mm	φ800	φ1000	φ1200
	Maximum turning diameter	mm	φ700	φ800	φ1000
	Maximum turning height	mm	850	850	1000
Spindle	Spindle speed	rpm	100-800	100-800	100-800
	Spindle motor power	Kw	22	22	22
	Spindle diameter	mm	φ160	φ180	φ200
Hydraulic chuck + tool Turret	Chuck model	Hydraulic chuck
	diameter	inch	21"	24"	32"	(optional)
	Turret station		Four workstations/ eight workstations	Four workstations/ eight workstations	Four workstations/ eight workstations	(optional)
guide	X-axis rolling linear guide		2 pieces, width 45mm	2 pieces, width 45mm	2 pieces, width 55mm
	Z axis rolling linear guide		2 pieces, width 55mm	2 pieces, width 55mm	2 pieces, width 55mm
CNC system	Standard configuration		GSK	GSK	GSK
Cooling system	cooling motor	W	750+1.2kw	750+1.2kw	750+1.2kw
	Pump output	m³/h	4m³/h	4m³/h	4m³/h
Accuracy	Repeatability	mm	±0.003	±0.005	±0.005
	positioning accuracy	mm	±0.06	±0.08	±0.08
	smallest positioning unit	mm	0.001	0.001	0.001
Weight and dimensions	Dimensions (approx.)	mm	2400×2100×3200mm	2400×2100×3600mm	3100×2650×3700mm
	Gross weight (approx.)	Kg	8000	9000	13500

Standard configuration
GSK CNC system
Taiwan servo turret
Three-jaw hydraulic chuck
Taiwan linear guide
Taiwan ball screw
Optional
CNC system Fanuc, Siemens, HNC
Taiwan powered turret
Manual chuck/four-jaw chuck/special tooling
Linear guide THK
Ball screw THK
Automation accessories Robot/automatic feeding device/automatic door
Configuration

Hydraulic turret
The internal structure adopts cam design, accurate segmentation angle, fast tool change speed, suitable for precision cutting
The turret rotates, suitable for hydraulic motor, large and stable torque
The turret tightens and loosens with hydraulic power source, the action is smooth, suitable for heavy cutting.
Hydraulic chuck
Hydraulic chuck can automatically complete the clamping and loosening of the workpiece, improve work efficiency, maintain a stable clamping force, and effectively prevent the workpiece from loosening or falling off. The clamping force of the hydraulic chuck can be adjusted as needed to meet the processing requirements of different workpieces.
High rigidity structure
Based on the combination of high rigidity structure and precision line rail, the optimized design is carried out through finite element calculation to meet the processing range while reducing the size of the machine tool and increasing the rigidity.
Spindle
Adopting high-speed, high-precision, high-rigidity unit assembly structure, the spindle bearing adopts NN series bearings, which ensures the rigidity and strength of the spindle unit, and the effective contact surface reaches more than 95%, so as to ensure the best stability of the spindle when rotating at high speed.





Packaging & Shipping

FAQ
Q1: Can it be installed and debugged overseas?
A: Yes, we will arrive at the customer's site as soon as possible to install and debug.
Q2: Which countries have your equipment been exported to?
A: Our products are exported to many countries and regions including Russia, Australia, Vietnam, India, Algeria, Bangladesh, Saudi Arabia, Nigeria, South Africa, etc.
Q3: Are you a manufactuer or trading company?
A: We are manufacturers.
Q4: Are you in stock?
A: It is in stock, depending on which model of equipment you choose.
Q5: Can it be customized for us upon request?
A: Yes, we have a professional technical team to meet your needs.
Q6: What about the lead time for mass production?
A: The time will be determined according to the quantity of the specific ordered products.
Q7: How long will it take to ship?
A: About 30-60 days, the specific time is subject to the actual situation.
Q8: Packaging & Shipping:
A: Packed in wooden cases and transported by shipping.
Q9: What field is the product used in?
A: The company's products are widely used in processing fields such as automobiles, aerospace, molds, and machinery manufacturing.
Q10: About the price?
A: All products are sold directly by the manufacturer. They are produced in our own factory, eliminating the middlemen and are delivered directly to customers. The quality is guaranteed and the specific price is subject to the actual quotation.

---
