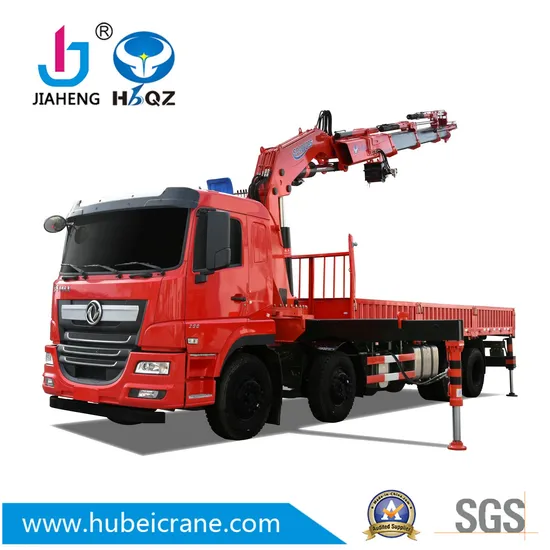

HBQZ 20 Tons Mobile Hydraulic Folding Boom Crane with High Quality (SQ400ZB5)

Product Description

Hubei Jiaheng Technology Co., Ltd
Hubei Best Crane Co., Ltd
(Truck Crane Professional Manufacturer)
Web: hbjh2013.en.made-in-china.com Our Advantages
1). Use HG785D international standard high-strength steel to reduce the weight of the crane.
2). The boom of the knuckle crane has used a hexagonal structure, reducing the lateral.
3). Italian brand of balance valve, hydraulic lock, operated valve, hydraulic pump, and other core parts
to ensure the micro-mobility, security, and stability.
4). Parker brand oil seal and gasket for hydraulic pump.
5). The brand remote control operates from Sweden.
6). The factory is SGS certificated.

Detailed Photos

Product Parameters

Model #	SQ400ZB5 / knuckle crane 12ton at 3m
Max Liftingmoment	400Kn.m
Max Lifting Capacity	12000kg/ 3.0m
	6300kg/ 6.15m
	3600kg/ 9.75m
	2300kg/ 13.3m
Max Lifting Height	15.7m
Max Working Radius	13.3m
Boom Section	5 stages
Rotation Angle	360°All Rotaion
Rated Working Pressure	28mpa
Oiltank Capacity	200L
Related Oil Flow	64 L/min
Outrigger Span	2330-7100mm
Outrigger	4 ,adjustable, Hydraulic operating.
Crane Weight	5600kg
Installation Space	1530mm
Swingtype	Planetary gear reduction
Safety Device	Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device.
Options	Aux.winch,Aux.Boom,Remote control
Material	HG785D

Truck for reference
Truck brand	Dongfeng (other truck brand can be customized)
Cabin	Driving type: 8X4, Left hand drive (Right hand drive type can be customized)
	Color is optional
Vehicle Main Dimensions	Overall size (L x W x H)	11950X2500X3800 mm
	Wheel base	1800+4600+1350 mm
	Cargo Body	6800X2350X500 mm
Weight in KGS	GVW	31000 kg
	Tare weight	14500 kg
	Front axle loading capacity	2 X 7000 kg
	Rear axles loading capacity	2 X 16000 kg
Engine	Type	Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power	371HP (273kw)
	Max Torque	1500N. M
	Emission standard	Euro II
Max Speed	102 km/h
Gearbox	Manual gearbox with 10 forwards & 2 reverses, with PTO
Tire	12R22.5 tubeless tire, 13 pieces including one spare tire
