Efficient DC24V Boost Constant Current LED Driver (AT1600)

Product Description

Reliable Efficient DC24V Boost Constant Current LED Driver (AT1600)
Features :
Constant Current Input voltage DC12V-24V Rated ouptut power 48W Boost output Output voltage LED should be higher than input voltage For outdoor & Indoor lights Output open circuit short circuit protection IP65 Waterproof
Main Datas :
Suitable for DC10V-28V Input voltage
Output power Boosting type
Short circuit protection
Power factor is > 0.9,low temperature
ROHS standard
Have bared PCB and Plastic box for choice
Specification

Model NO.	AT1600-12-12XP2W	AT1600-24-24XP2W
Rated Input voltage	DC10-28V	DC20-28V
Input voltage scale	10~28V DC ,50~70Hz
Efficiency	>90%	>90%
Rated input power	<29W	<56W
Loading input power	<0.2W	<0.2W
Short-circuit input power	<0.3W	<0.3W
DC Current	<2450 mA	<2400 mA
Cold start surge current	<25A	<25A
Leakage current	NO	NO
Constant current output scale	650±30mA,(Vin+3)-40V	650±30mA,(Vin+6)-77V
Loading voltage	<3V	<3V
Ripple ,noise	0.5V	0.5V
Linear adjust	1%	1%
Load regulation	1%	1%
Time for starting	<0.5S	<0.5S
Opposite for wires	Damaged
Low or high input voltage	Long Low voltage or high voltage will damage the power supply
Short-circuit or open-circuit output	protection
Overheat	IC has protection for overheat
Working temp & humidity	-20ºC-60ºC,20-95%RH
Storing temp ,humidity	-25ºC-80ºC,20-95%RH
RoHS	YES
MTBF	>25000 HOURS
Dimension ,weight	PCB78mm*39mm*24mm;80g plastic case 101mm*46mm*29mm;110g
Input wires:	stranded cable black /PVC 0.50mm2/length 100mm; L,N,Yellow-green ground wire
Output wires	stranded cables white/0.50mm2/length 100mm Black LED - ; RED /LED + Ground wire

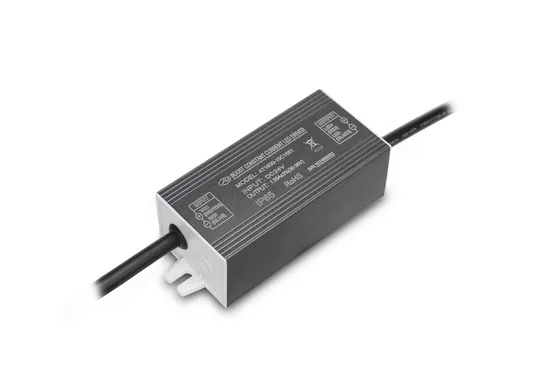

Picture of boost led constant driver :
Bared Boost LED Driver PCB Board :
Competitive Advantage:

1. One Stop Of LED Solutions, About 14 years specializing in High Power LED industry;
2. Complete supplying system with full range of Products, from high power leds, led optical lens ,led constant drivers, MCPCB modules and many led light components;
3. Strict process and quality control;
4. Strong design of OEM Service and production capability.


Applications:
General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Flood lighting,cast light lamps
- Street lamp,Tunnel lamp
- Replace the old equipment .

---
