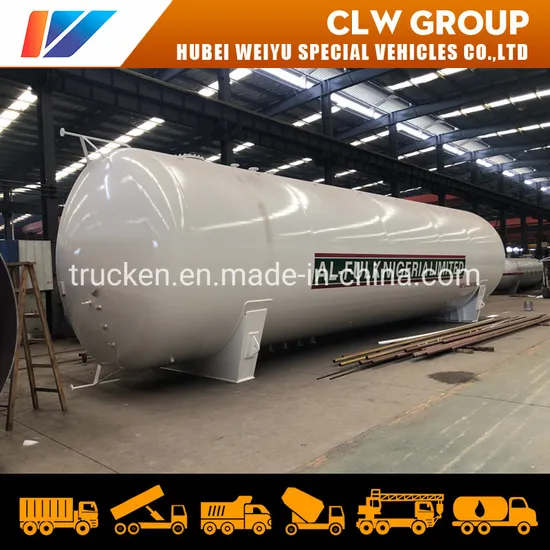

120cbm 120000L 60mt 60 Tons Propane Gas Tank Bulk LPG Storage Tank for LPG Filling Plant

US$13,580.00-45,000.00 1 Piece (MOQ)

Basic Info.

Function
Storage Pressure Vessel
Application
Liquefied Gas
Material
Carbon Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Tank Material
Q345r or Q370r
Loading Capacity
60t, 60ton, 60tons, 60mt, 60 Tons
Tank Size
120m3, 120cbm, 120000liters, 120000L
Thickness of Shell
18mm 20mm
Design Pressure
1.71MPa 1.77MPa 17.1bar, 17.7bar
Hydraulic Test Pressure
2.21MPa 22.1bar
Color
as Customized
Life Time
20 Years
Thickness of End Plate
20mm
Diameter
3400mm
Fill Medium
Cooking Gas, Propane, LPG, Gas, Butane
Corrosion Allowance
1mm
Overall Size
13820*3436*4026mm
Gas Density
420kg/Cbm
Heat Treatment
Bulk
Transport Package
Naked with Wax
Specification
120000L, 120cbm, 120000liters, 120m3
Trademark
CLW
Origin
Suizhou, China
HS Code
73110090
Production Capacity
500 Unit/Month

Product Description

Factory Price Pressure Vessel 120, 000 Liters/120cbm LPG Storage Tanker 60mt 60tons Gas Storage Tank with All Station Equipment
Product Description
1. Storage medium of lpg storage tank: LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of lpg storage tank: 5m³~200m³,2ton~100tons.
3. Manufacturing standards of lpg storage tank: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008.

Product Specification for 120CBM 120000L 60MT 60 tons Propane Gas Tank Bulk LPG Storage Tank for LPG Filling Plant
Parameter of 60mt 120cbm lpg storage tank
ITEM PARAMETER ITEM PARAMETER
Volume 120cbm Thickness of Shell 18mm
Tank Material Q345R Thickness of End plate 20mm
Overall Size 13820*3436*4026mm Tank Net Weight 24960kg
Tank Diameter 3400mm Loading Capacity 47880kg
Design Pressure 1.77Mpa Gas Density 510~590kg/M3
Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm
Design Temperature -20ºC~50ºC Heat Treatment Bulk
Vapor Outlet DN50 Gas Outlet DN50
Life time 15 years
Accessories
Model Item Qty Junction surface
J41N-2.5-50 Stop Valve DN50 6 RF
J41N-2.5-25 Stop Valve DN25 2 RF
J41N-2.5-80 Stop Valve DN80 2 RF
J24W-320-DN6 J24W Needle Valve M20*1.5 1
HG21584-95 Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 1 RF
A42F-25-80 Safety Valve DN80 2 RF
Y-100T Pressure Gauge M20*1.5 1.5degree 0~4Mpa 1
WTQ-280 Thermometer M33*2 2.5 degree 1 -40ºC~60ºC

Reference Photos
We supply package solution for lpg station building as follows
Production Process
Company Introduction
Certificates
Our Overseas Exhibition
