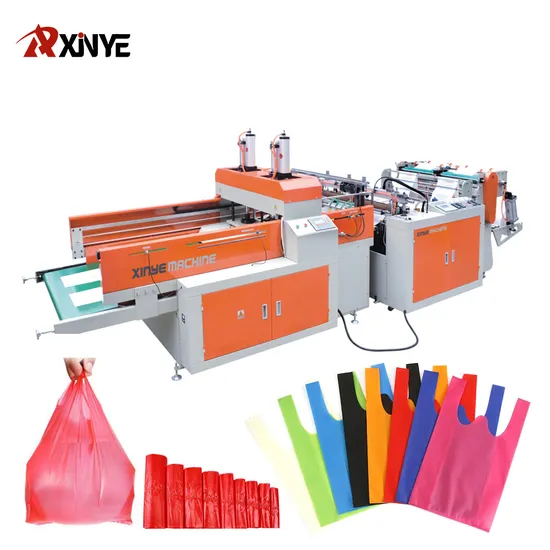

Super High Speed Shopping Bag Making Machine, Super High Speed T-Shirt Bag Making Machine

Product Description

Brief Introduction
1.This machine is hot sealing hot cutting bottom sealing machine special for polyethylene T-shirt (W/U shape) shopping bags.
2. It is double lines design with two sepertate servo and printing marks tracking systems which allows to produce two printed bag at same time.
3. Adopt high sensitivity photoelectric eye, accurately tracks the printed marks. When the printed mark is missing, machine alarms and stops.
4. Main motor and unwinding motor adopt AC motor controlled by Frequency inverters , which is easy to adjust speed and save power.
5. Machine stops automatically when film rolls used up .
6. When it comes to per setting quantity, sealing and cutting unit keeps working while the handle punch unit robert hand pulls and deliveres the bags to punching mould.
7. Special design sealing knife allows 100 degree rotation when need clean the knife, which is more convenient and safe.
8.The sealing part is strong and the finished product is neat.
9.Adopt gas-liquid booster cylinder on punching machine, low noise, small gas consumption.
Main Technical Vaviables

Model: DFR-400 X2 , DFR-450 X 2 , DFR-500X2

Bag Width Range : 150-360mm, 150-410mm, 150-460mm

Bag Length Range : 220-700mm

Bag Thickness : 15-60 Mimcron

Speed : (Depends on bag size and thickness) 150-240 Pcs/Min X 2 Lines (Standard) 200-300 Pcs/Min X 2 Lines (High Speed) 250-400 Pcs/Min X 2 Lines (Super high speed)

Total Power : 8 Kw, 11Kw, 15Kw

Machhine Weight : 2000Kg, 2300Kg, 2700Kg

Machine Size : 7000 X 1600 X 1700mm , 7000 X 1700 X 1700mm , 7000 X 1800 X 1700mm

Air Pressure : 8kg/cm2 ; 700Ni/min

Company Information
Xinye packaging machine company with a long history is located in Rui'an, Zhejiang Province. We specialize in producing series of packaging equipments, like bag making machines, printing machines, film blowing machines and material cutting and punching machines. Taking sincerity and credit as the most important factor for success, we will do our best to improve product quality and perfect our service system. We welcome all friends to visit us for future cooperation.
Our Services:
Installation Services:
Installation Services are available for all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will instruct you how to use this machine well.
After Sales Service:
We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
Xinye's pursuit of innovation and excellence is not just limited to the equipment. It provides unparalleled service for global customers, no matter their equipment is produced last week or long before, Xinye will help maximize the return on investment.
1. Assembly and adjusting the machine for customer, training operator for customer.
2. Quickly respond to the machine fault, supply technical support in 24 hours after fault happen.
3. Engineer service abroad is available, such as adjusting the machine and training the operator for customer.
FAQ
1.Q: Are you a factory or trading company?
A: We are established in 1995, an actual factory and manufacturer in the line of printing and packing machine for 20 years.
2.Q: Where is your factory loaded? How can I visit there?
A: Our factory located in Rui'an city, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us.
3.Q: Which industries are widely used in of your machine?
A: Bag making machine, film blowing machine, printing machine.
4.Q: How about the payment term?
A: For new customer, our payment term is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5.Q: What about your main market?
A: Our products be sold well in 30 provinces in China and have good reputation in China, also we pay attention to developing the oversea market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
6.Q: How does your factory do regarding quality control?
A: Quality is the most important principle. GREAT WALL always attach great impartance to quality controlling from the every beginning to the every end. Our factory has passed SGS and CE certifications.

---
