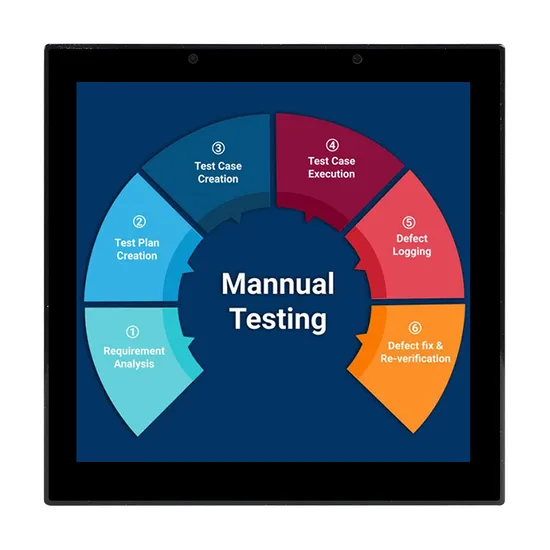

Yc-Sm41p in Wall Embedded Android Tablet 4 Inch Display Central Control Touch Screen AC Smart Home Control Panel for Home Automation

US$78.00
1-199 Pieces
US$70.00
200-499 Pieces
US$69.00
500-999 Pieces
US$68.00
1,000+ Pieces

Basic Info.

Model NO.
YC-SM41P
Built-In Microphone
Built-In Microphone
Card Reader
Without Card Reader
Certification
Ce, ROHS
Cpu Core
Quad-Core
Cpu Type
Rockchip
Display Resolution
480*480
Drive Interface
USB 2.0
Fingerprint
Without Fingerprint
Front Camera Pixel
No
Hard Disk Capacity
32G
Memory
2GB
Network Mode
WiFi, RJ45
Operating System
Android
Rear Camera Pixel
No
Remote Control
Yes
Screen Size
4′′
Screen Type
Capacitive Screen
Speakers
Digital Amplifier Speaker
Security Protection
No
Voice Assistant
No
Warranty Period
1 Year
Webcam
Without Webcam
Dimension
84.5*84.5*36.2mm
CPU
Rk3566 Quad-Core Cortex-A55 up to 1.8GHz
System
Android 11/ Linux
RAM
2GB
ROM
32GB
Resolution
480*480
WiFi
802.11b/G/N
RS485
RS485 a, B
Power
AC 110~240V, 50Hz or Poe
Color
Black & White
Type C
USB Debug
Ethernet
10m/100m
Microphone
Microphone *2
Speaker
Speaker*2
Transport Package
Caron
Specification
1KG
Trademark
Portworld
Origin
Shenzhen, Guangdong, China
Production Capacity
100000PCS/Month

Packaging & Delivery

Package Size
30.00cm * 25.00cm * 6.00cm
Package Gross Weight
1.000kg

Product Description

Yc-Sm41p in Wall Embedded Android Tablet 4 Inch Display Central Control Touch Screen AC Smart Home Control Panel for Home automation Product Description CPU: RK3566 Quad-core Cortex-A55 Operating System: Android 11 / Linux Internal Storage: 2GB RAM, 32GB ROM Network: Ethernet, Bluetooth, WIFI Interface: RJ45, Type-C, RS485, Reset Application: Smart home, smart building, smart hotel, smart city, etc. Power supply: AC, POE Suitable for EU wall box and 86 wall box Customized functions: Light sensor, Temperature and humidity sensor, etc Product Parameters
4 inch
YC-SM41P		 Dimension 84.5*84.5*36.2mm
Display size 4 inch
CPU 3566 Quad-core Cortex-A35
System Android 11
Resolution 480*480 IPS
Touch Panel Capactive touch panel
RAM 2G
ROM 32G
WIFI 802.11b/g/n
Bluetooth BT 4.0
Ethernet 10M/100M
RJ45 Ethernet interface input (RJ-45 cable)
Type C Type C *1
RS485 RS485*1
Reset Reset *1
Speaker Speaker *1
Microphone Microphone *2
Power supply POE ,IEEE802.3af
AC 110~240V , 50HZ
Light sensor Light sensor (Option)
Temperature & humidity sensor Temperature and humidity sensor (option)
Install In wall & Embedded
Color White color /Black Color
Working temperature .-10°~60°
Language Multi-languages support
Working temperature .-5°~70°
Certifications
Company Profile
FAQ 1. Can you accept sample order? A: Yes. 2. How long does it take to deliver the sample? A: It depends on different products, it usually takes 10-15 days. 3. What's your Mini Order Quantity(MOQ)? A: It depends on different products, for tablet pc 1000-2000 pieces. 4. What payment term you can accept? A: For sample, T/T or West Union is available, for big order by T/T, West Union or L/C. 5. How to ship the goods to us? A: For the sample or small quantity, by DHL For big order, normally by sea shipment or by air shipment. 6. Can we have our own logo printed on the product or package? A: For sample, it usually be neutral. For big order, it supports customized logo. 7. How much will the customized logo cost? A: For big order, if your quantity up to our MOQ, it usually be free. OEM / ODM are highly welcome! Trial order is acceptable! We are the factory, the price must be very competitive.
