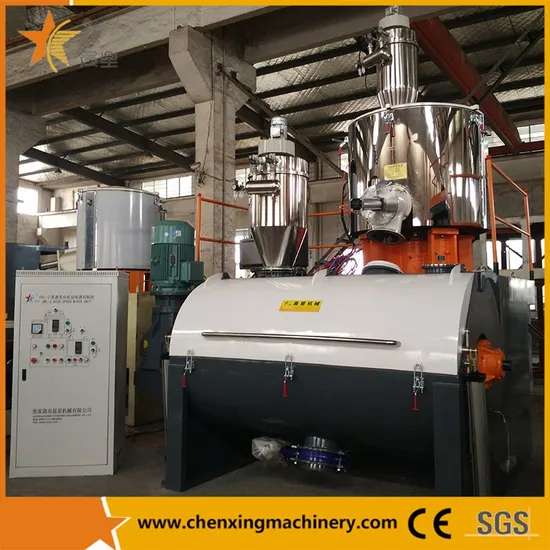

Horizontal Mixer (SRL-W) for PVC Resin Powder

Product Description

Product Description

Horizontal Mixer (SRL-W) for PVC resin powder
1. Horizontal Mixer (SRL-W) for PVC resin powder Used for the processes of compounding, drying and dying as one of the most ideal equipment for the manufactures of profiles and tubes.
2. The cold mixer adopts horizontal structure with the characteristics of large cooling area, fast speed, more homogenized. This equipment was once been honored with 'Golden prize of Tianjin International expo for invention, new products and new technology ' in 2002.
3. The mixer lid is double sealed and opened in the pneumatic way.
4. The electic control system adopts RKC, Siemens, Mitsubishi, Omron and other famous instruments and control components to realize automatic control.
5. Equiped with pulse dust catching device. (on customer's option)
6. Both the blades and belts wheel have been specially treated through the balancing machine of static and dunamic.
7. Simple loading system can also be equiped on customer's option.
Product Parameters

Model	Capacity (L)	Effective capacity (L)	Motor power (kw)	Heating cooling method	Discharge method	Water consumption(t/h)	Main shaft speed	Weight (kg)
SRLW 200/500	200/500	150/375	30/42/7.5	electricity, self-friction/water cooling	pneumatic	3	500/1000/100	2500
SRLW 300/600	300/600	225/420	40/55/11	electricity, self-friction/water cooling	pneumatic	4	500/1000/100	2900
SRLW 300/1000	300/1000	225/640	40/55/11	electricity, self-friction/water cooling	pneumatic	5	500/1000/100	3200
SRLW 500/1000	500/1000	375/640	55/75/15	electricity, self-friction/water cooling	pneumatic	6	430/860/100	3600
SRLW 500/1600	500/1600	375/1000	55/75/18.5	electricity, self-friction/water cooling	pneumatic	7	430/860/80	4000
SRLW 800/2000	800/2000	520/1200	83/110/22	electricity, self-friction/water cooling	pneumatic	8	375/750/80	4800
SRLW 800/2500	800/2500	520/1500	83/110/22	electricity, self-friction/water cooling	pneumatic	9	375/750/80	5000
SRLW 1000/3000	1000/3000	1650/1950	90/132/30	electricity, self-friction/water cooling	pneumatic	11	300/600/65	6000
SRLW 1600/4000	1600/4000	1040/2700	2-8/110/37	electricity, self-friction/water cooling	pneumatic	13	375/750/80	6500

Detailed Photos

---
