RO Waste Water Treatment System Machine Equipment for Industry

Product Description

Model	Outcome capacity (Ton/h )	Motor power (kw)	Membrane	Entrance Diameter (mm)	Size(L*W*H) ( mm)	Weight (Kg)
KM-1	1	1.5	4040	Φ32	1300*600*1400	100
KM-2	2	3	4040	Φ38	1400*600*1400	200
KM-3	3	4	8040	Φ48	1600*750*1750	200
KM-4	4	5	8040	Φ48	2550*750*1750	250
KM-5	5	7	8040	Φ60	2550*750*1750	300
KM-10	10	11	8040	Φ60	3000*800*2000	600
KM-15	15	16	8040	Φ72	3000*1250*2000	840
KM-20	20	30	8040	Φ60	3000*1800*2000	1250

First stage pretreatment.(Sand filter)
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Third stage pretreatment (Resin softener)
Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.
Fourth stage pretreatment (Micron filter)
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
RO system
The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level.

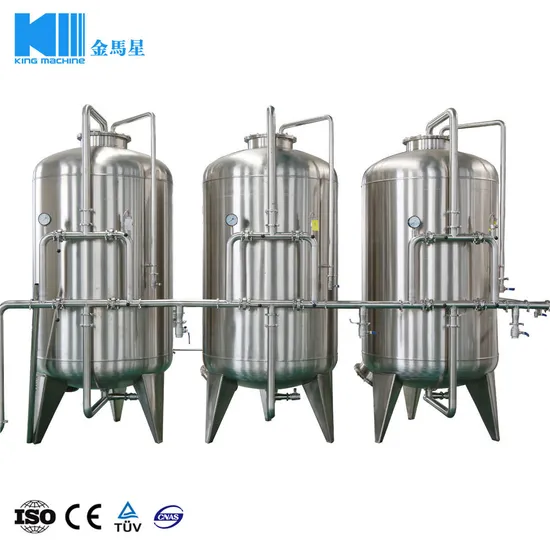

Silica sand filter
It can remove the suspended solids and gluten particles in the water, thus reduce the turbidity of water.
Active carbon filter
It can remove the pigment, smell and a large number of biological organisms in the water
Soften the water.
Sodium ion exchanger
It can remove calcium and magnesium ions in the water, so as to soften the water.
Reverse Osmosis
The Reverse Osmosis device is an equipment to purify the saline water with the action of pressure difference of semi-permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Difference materials have different osmotic pressures.
The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and organic materials, becoming the best first-choice choice equipment in the engineering of modern purified water, highly purified water and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintenance.
UV sterilize
It uses the UV to kill some bacteria that may also pass through the reverse osmosis system.
Ozone sterilizer
Some bacteria may not be killed by UV, the sterilizer uses ozone to kill those bacteria.
Durable material
The material of water treatment plant is SUS 304.The material of ozone mixing tower tank is SUS 316, which is durable.

---
