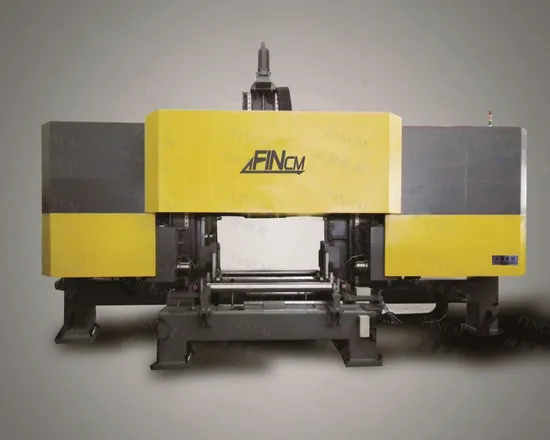

BHD500E/3 Fincm CNC Planar Drilling Machine For Furniture

Product Description

product description:BHD500E/3 Product Description

Product Parameters

H-beam	Section height	100~500mm
	Flange width	75~400mm
U-shaped steel	Section height	100~500mm
	Flange width	75~200mm
Maximum length of material		12000mm
Maximum thickness of material		20mm
Drilling power box	Quantity	3
	Maximum borehole diameter	Upper unit: cemented carbide φ 30mm / high speed steel φ 35mm Left and right units: φ 30mm
	Spindle taper hole	BT40
	Spindle motor power	Left,Right 7.5KW Up 11KW
	Spindle speed (stepless speed regulation)	20~2000r/min
CNC axis	Quantity	7
	Servo motor power of fixed side, moving side and middle side feed shaft	3×2kW
	Fixed side, moving side, middle side, moving side positioning axis servo motor power	3×1.5kW
	Moving speed of three positioning CNC axes	0~10m/min
	Moving speed of three feed CNC axes	0~5m/min
	Up and down travel of fixed side and mobile side power head	20-380mm
	Left and right travel of middle side power head	30-470mm
	Width detection stroke	400mm
	Web height detection stroke	190mm
Feeding trolley	Power of servo motor of feeding trolley	5kW
	Maximum feeding speed	30m/min
	Maximum feeding weight	2.5t
Cooling system	Compressed air pressure required	0.8Mpa
	Number of nozzles	3
	Cooling mode	Internal cooling + external cooling
Accuracy	Error of adjacent hole spacing in hole group	±0.4mm
	Accuracy error of 10m feeding	±1.0
Hydraulic system	Motor power of hydraulic station	4kW
	system pressure	6MPa
electrical system		PLC+ sockets
Plasma Cutting Unit	Number of cutting heads	1
	Cutting Type	Plasma
	Rated cutting current	105A
	Use plasma gas	compressed air
	Servo motor power	0.2 kw
	Maximum speed	5 m/ min
	Trip	400mm

Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Cooperative Supplier

Product Process Control

Customer Praise:

Sale Networks

Customer praise:
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.

---
