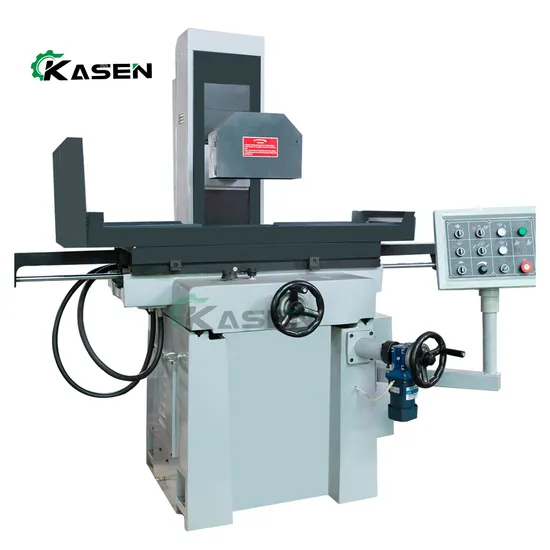

Good After Sale Service Hydraulic Surface Grinder My1022 My1224 My1230 Grinder Machine

Product Description

High quality surface grinding machine MY4080 Manual Surface Grinder
Product Description
Main performance characteristics: 1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation. 2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy,accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions. 3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation. 4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function. 5. The Guangzhou CNC system GSK96 and two axis NC, according to the actual processing conditions free programming, with pulse wheel, X and Z axis feed can be free to switch freely. 6. Machine adopts full enclosed casing, can completely cover the whole of the working area, effectively prevent the splash of the cooling liquid and iron filings, and according to the requirements of clients connected ceiling spray dust removal device.
technical parameters:

Specifications				Units	MY1022	MY1224	MY1230
workbench	Worktable size (L * W)			mm	540×250	600×300	750×300
	Max. travel of table0			mm	560×260	630×320	780×320
	Table T slot (slot number x slot width)			mm	1×14	1×14	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)			mm	φ200×20×Φ31.75	Φ300×30×Φ76.2	Φ300×30×Φ76.2
	Distance spindle center line to working table			mm	450	520	520
	Grinding wheel speed		50HZ	r/min	2850	1450	1450
			60HZ	r/min	3360	1680	1680
The amount of feed	Table longitudinal (left and right) speed			m/min	3-20	3-20	3-20
	Table transverse (front and rear) feed handwheel feed		Continuous (stepless)	mm/min	600	600	600
			Intermittent (stepless)	mm/times	0-5	0-6	0-6
			Handwheel per turn	mm	4.0	4.0	4.0
			Handwheel per lattice	mm	0.02	0.02	0.02
	The vertical (up and down) feed handwheel feed		Handwheel per turn	mm	1.25	2.0	2.0
			Handwheel per lattice	mm	0.01	0.01	0.01
Hydraulic system	Hydraulic motor			kw	1.5	360	360
	working pressure			Mpa	3	2.2	2.2
	Fuel tank capacity			L	80	4	4
	Maximum flow rate			L/min	18	100	100
Motor power	Spindle motor			kw	1.5	20	20
	Cooling motor			W	40	2.2	2.2
working accuracy	The process surface of the base level of the parallel degree			mm	300:0.005	40	40
	Surface roughness			μm	Ra0.32	120	120
Machine weight		Net weight		kg	950	300:0.005	300:0.005
		Gross weight		kg	1050	Ra0.32	Ra0.32
External size (L * w * h)				mm	1680x1220x1720	1400	1400
Packing size (L * w * h)				mm	1730x1290x1940	1530	1530

Service support
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
