Product Details
Product Description
Product Description
The TUV certified EV charging cable is suitable for CCS 2 charging sockets and can be used with any vehicle with 7-pin Type 2 sockets, home chargers and public charging stations.
Our products can provide high current, suitable for DC fast charging, and can be customized according to the length of the cable you need. It can charge and supply European and even most types of electric vehicles.
Product Parameter:

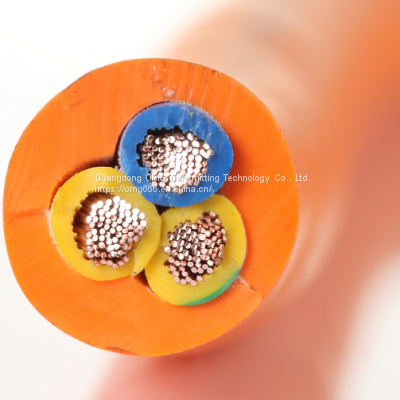

Construction
| Features
|
1.Conductor
| Rated temperature ：-40℃～90℃
|
Material: Bare Copper
| Rated Voltage: DC1500V
|
2.Insulation
| Flame Test:Testing method according to EN60332-1-2
|
Material：EVI-2
| Bending Radius:≥6*OD
|
Color: Yellow/Green，Blue，Brown、Black、Gray
| Dielectric Voltage:2.5kVAC for main core，2.0kV AC for CC/CP
|
3.Filler
| Low temperature impact:-40℃No cracks
|
Material：PP or cotton yarn
| Hot Shock:150℃/1h No cracks
|
4.Tape
| Oil Resistance:IRM 902 100℃168h Tensile Strength Variation<±40%，
|
Material：Non-woven fabric
| Elongation Variation<±30%
|
5.Sheath
| Crush resistance:Sq≤4crush force ≥4KN;4≤Sq≤35 crush force≥11KN
|
Material：TPU
| Resistance to Acid and alkali:168hTensile Strength Variation≤30% Elongation ≥100% Environmental Requirements:Compliant
|
Color: Any color
| with RoHS2.0 and REACH
|
The OMG EV charging cable is made of TPU material, which has high tension and excellent pulling force, and can withstand the effects of harsh weather such as corrosion, rain, and temperature fluctuations, even when used in outdoor charging piles.
To learn more about new ev cable and ev charging cable, please visit OMG's official website: https://www.omgevcable.com/
>>
