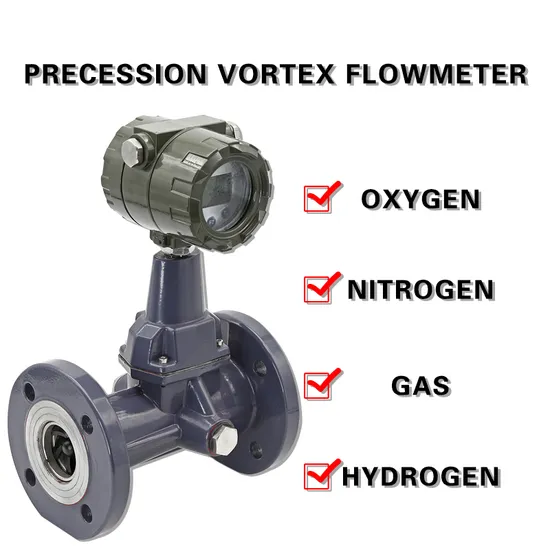

Klux 1′′ Intelligent Vortex Precession Flow Meter for Air /CO2/O2/N2

Product Description

High precision gas trade metering for large diameter small flow anti-seismic performance of good precession vortex flowmeter

Product Features :
1.Pipe size: DN15-200
2.Power supply:24VDC and 3.6V lithium battery
3.Output :4~20mA ,pulse ,RS-485
4.Used for natural gas,N2,CO2,O2,Air and other pure gases
5. Flange typeProduct description: When fluid enters the flowmeter, due to the effect of
the entrance spiral screw-up, a fierce vortex flow is
generated, which is accelerated by the contraction of
the venturi structure.When the fluid enters the diffusion
section, the secondary acceleration of the stable
cyclone forms a gyroscopic precession phenomenon,
which is carried into the micro-processing unit of the
intelligent flow integrator for calculation and
processing, and directly displays the volume flow and
total amount of the gas on the LCD screen.
Product details:
Technical parameters:

Nominal diameter (mm)	Flow range(m3/h)	Nominal pressure(MPa)	Pressure loss(kPa)	Accuracy	Repeatability	Case material
15	1~7	1.6 2.5 4.0 6.3 10.0 16.0 25.0	△P=ρ/1.205×PN	1.0 1.5	Less than 1/3 of the absolute value of the basic error limit	Cast aluminum alloy shell 304 stainless steel housing
20	1~18
25	2~30
32	4.5~60
40	6~80
50	10~150
65	18~220
80	28~400
100	50~800
125	80~1000
150	100~2200
200	360~3600

Production Process:
Field Application: Company information: WEIHAI KUNKE FLOW INSTRUMENT CO.,LTD. is a high-tech enterprise specializing in meter research and development, production, sales and service.
The company was founded in 2010. In 2012, it won the excellent incubation enterprise of Weihai City. It is a high-tech enterprise supported by the Weihai Municipal Government. In 2017, the company was listed as a securities company.
The company has successively obtained ISO9001-2015 international quality system certification, ISO14001-2015 environmental management system certification, OHSAS18001-2007 occupational health and safety management system certification and ISO10012-2003 measurement management system certification, CE certificate,
Exhibition information: Payment&Delivery:
Related Products:
FAQ:
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:Can I use a precession vortex flowmeter to measure gas?
A: Of course you can.
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
Q: What is the warranty for your product ?
A: Warranty: 1years.
Q: Can it be customized?
A:Yes, we can do OEM service based on your requirement if it is executable.
Precession vortex flowmeter with high precision, large diameter and small flow has good seismic performance

---
