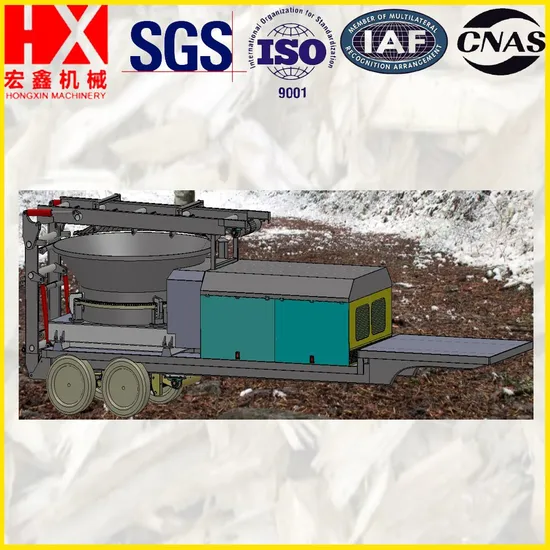

Easy Move Wheels Diesel Engine Equipped, Conveyor Foldable Forestry Tree Root Biomass Mulcher

Product Description

Product DescriptionThe Towable & Hydraulic control Full-automatic Stump Grinder,with compact and reasonable structure, simple operation, high production capacity, wide adaptability of raw materials, high quality of cutting wood chips, safe and reliable, convenient maintenance, is currently a very advanced wood crusher in China.Product Features 1) It is directly feed into the hopper by loading machine, directly crush without manual intervention, and the feed hopper is drive by hydraulic motor , and the hydraulic motor is adjusted by manual speed control valve to adjust the speed of feeding. The feed hopper is welded with 18mm thick manganese plate, with strong structural strength and high wear resistance, and the diameter of the feeding port is large enough, and the feeding is more smooth. 2) The rotor is the main working part of the machine. It has good rigidity and moment of inertia, and has passed the balance experiment.
3) The spindle and rotor are connected by a locking device. Its structure is compact and reasonable, convenient disassembly and installation, reliable use. The two ends of the spindle are supported by automatic self-aligning roller bearings, and the bearing housing is fixed on the frame. 4) This machine adopts large power diesel engine, equipped with large capacity diesel tank, no need to configure electrical cabinet power supply. 5) The hydraulic system is composed of gear pump, hydraulic motor, solenoid directional valve, manual speed regulating valve, oil cylinder, one-way throttle valve, solenoid relief valve, hydraulic tank and other oil circuit components.
6) During working, the gear pump supplies oil to the hydraulic motor, the solenoid valve can make the feeding plate rotate to complete the feeding and refeeding, and the manual speed control valve can adjust the speed of the feeding plate. The solenoid valve can be used to supply oil to the maximum travel of the oil cylinder, and the maintenance work can be carried out after installing the support top.Product Parameters

ITEM	PARAMETERS	ITEM	PARAMETERS
Model	HX3600 model Mobile	Feed in diameter (mm)	3600
Machine size(mm)	9000×2500×4200	Crushing port diameter(mm)	2350
Transport size(mm	9000×2500×2950	feed in motor quantity(set)	1
Weight(tons)	21	Discharge motor quantity(set)	1
Capacity per hou	20-35	Discharge belt width(mm)	1150
Max crushing diameter(mm)	2350	Discharge Height(mm)	4200
Main Shaft rotation speed(r/min)	750	Discharge speed(m/min)	140
Diesel engine Power(Hualing Hanma)	408KW(550HP)/1900r/min	Feed in Control mode	Hydraulic contro
Rotor diameter(mm)	2350×680	feed in height[mm	2950
Blade quantity(pieces	10	Chassis system	Double shafts with Tyres
Blade size(mm	465×220×20	Tow mode	Dragging mods
Dead blade quantity	2	Hydraulic system	Hydraulic tank volume 400L
Dead blade size(mm)	1100×110×30	Control Mode	Automatic remote control

Packaging & ShippingCompany ProfileShandong Hongxin Machinery Co., Ltd
Our company is a professional manufacturer of log debarker, wood chipper, horizontal grinder, tub grinder, hammer mill and wood pellet mill.
Our company has introduced a series of advanced equipment including CNC Lathe, CNC Milling machine, Planer, Drilling machine, Sawing machine, CNC Boring machine, Balancing machine, Coiling machine. Meanwhile, we have obtained ISO 9001, CE certificates and many patents.
With a complete understanding of the requirements of both our customer and the industry, we offer defect-free equipment and services.
