Cq6230A Hot Sale China High Precision Mini Hobby Lathe

Product Description

CQ6230A Hot Sale China High Precision Mini Hobby Lathe

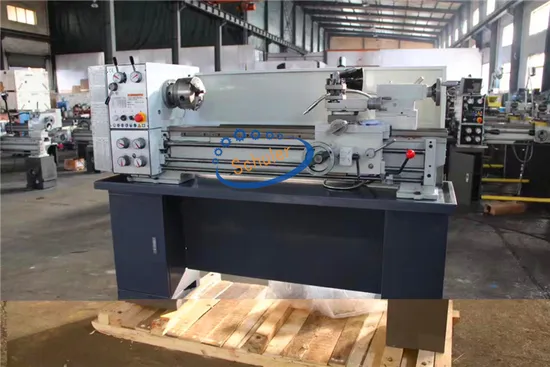

Product picture: Mini Lathe Machine Product Features:
1.Precision ground and supersonic frequency hardened bed ways.
2·The spindle is supported with precision roller bearing.
3·Strong power motor suited for heavy duty cutting.
Mini Lathe Machine Configuration list

Standard accessories	Optional accessories
·3 Jaw chuck(Φ160mm)	·4 Jaw chuck(Φ200mm)
·Change Gears Set	·Face Plate
·M.T.#3 Dead Centers	·Steady Rest
·M.T.#5/3 Reduction Sleeve	·Follow Rest
·Oil gun	·Work Light
·Splash Guard	·Foot Brake System
·Foot stands	·Coolant System
·Tool Box&Tools	·Live Center
·Oil Tray	·Drill Chuck+Drill Arbor
	·Leadscrew Guard
	·Chuck Guard
	·Localizer
	·Clutch For Feed Rod
	·Quick Change Tool Post
	·Digital Readout(2 Axis)

Mini Lathe Machine Technical Specifications:

Model	Unit	CQ6230A
Max.swing over bed	mm	Φ310mm
Max.swing over cross slide	mm	Φ180mm
Max. swing over gap	mm	Φ450mm
Distance between centers	mm	750mm/910mm
Width of bed	mm	181mm
Spindle bore	mm	Φ38mm
Taper of spindle bore	rpm	M.T.#5
Range of spindle speeds		65-1810(1400)rpm
Taper of tailstock		M.T.#3
Metric threads can be cut	mm	0.4-7mm
Inch threads can be cut		4-60 T.P.I.
Range of longitudinal feeds	mm/rev	0.0527-1.2912mm/rev
Range of cross feeds	mm/rev	0.011-0.276mm/rev
Max. travel of cross slide	mm	130mm
Max. travel of top slide	mm	75mm
Max. travel of tailstock quill	mm	100mm
Motor power	kw	1.1KW.3PH/1.5KW.1PH

Brand Image:
As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.
Mini Lathe Machine Details:
Mini Lathe Machine Package Delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
Contact information :
Shandong Schuler CNC Machinery Co,Ltd.
Add: Tengzhou City ,Shandong Province ,China
Edwin
Mob: +86-18663288651

---
