Biodegradable Paper Straw Forming Machine

Product Description

High Speed 70m/min Multi Cutters Paper Straw Making Machine Descriptions:
This Machine is suitable for producing different sizes of paper straws and very small paper tubes.
[1] It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
[2] Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.
[3] Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.
[4] Paper and glue stand is Integral Type. Euipped with Auto Paper Connection system and Glue Heating system. Improved machine running speed.
Technical Parameter:

Technical Parameter		Control System
3 layers	Main Servo Motor		Schneider 1.5kw*2
4-12mm	Motion controller		Panel Master
0.3-1mm	Touch Screen		Panel Master
0-60m/min; Max. 70m/min	Language		English
Two noses single belt	Electric Components		Schneider
Stainless steel	Pneumatic Components		Air Tac
By Servo Driver	Servo Motor		Schneider
Multi-blades; 7 pcs online	Servo Driver		Schneider
Optional	Guide Rail		THK
Servo motor synchronism tracking	Slider		THK
	Bearing		NSK
Automatically	Length fixing		Encoder
1-2 People	Configuration
0.6Mpa	Manual Paper Reel Stand		3 Layers
As agreed	Gluing Unit		3 Layers
Measurement & Weight		Belt 5pcs
4000*1500*1200mm	Mandrel Shaft		2 Pieces
8000*5000mm	Extra blades		5 Pieces
1400kgs	Useful Tool		1 Set

Paper Drinking Straws

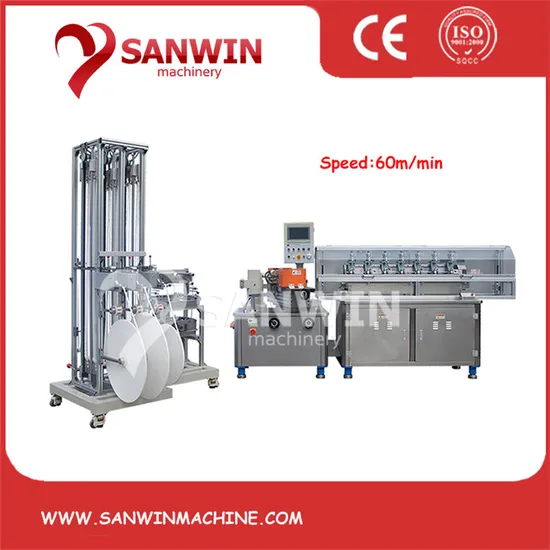

Machine Photo:
Machine Details:
1.-Integral Type Paper Reel Stand & Glue Unit
(Equipped with Auto Paper Connection & Glue Heating)
2. 7PCS CNC Multi-knives Inline Cutting System
3.Winding Part
4.L type collector
Or Dryer(optional)
Our Workshop
Our Customer:
Packaging & Shipping
Our Service :
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any query, pls tell me freely. We will try our best to satisfy with you !
