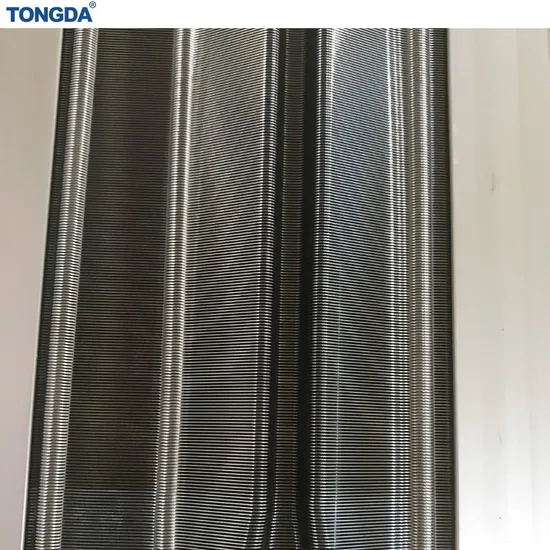

Steel Reed of Air Jet Spare Parts

Product Description

Product display and advantages
Main Feature :
The Steel Reed is made by dents, baulk, SS half circle,SS wire coil, special adhesive material etc. Widely applied on air jet loom, water jet loom, rapier loom and so on. In order to reach the demands ot high qualty labric and industrial textile producis, the yarn is deve loping to highcounl, mu lticolor, var ious libers, and the labric is developing to high counl, high density, environment protection. So we have researched out high densty, multicolor, multi-nozzle, double energy saving type profile reeds to let you choose.
Product details:
In order to reach the demands of high quality fabric and industriatextile products, the yarn is developing 1o high count. multicolor, various fibeers, and the fabric is developing to high count, high density.

So we have researched out high density, multicolor, multi-nozzle, double energy saving type profile reeds to let you choose. Special design of conical air-jet reeds.
We can produce various conical air -jet reeds according to the demands of dents about different fibers, yarns and looms. Glass fiber special used air-jet reeds.
Modeled handwork carpet(hang) special used heavy reeds. Various specifications of best quality tape reeds for non-shuttle |ooms, warptying comb reeds, any reeds of plastic weaving machine. Waiting for your special measurements to custom-made.
Main technicl parameters

Air jet reed
Name	Code	Scale
No. of Reed		60/10cm~320/10cm
Width of Dent	b	4
Total Width	l	<6000
Total Height	h1	100~122
Height of Air Current Guide	h2	51,56,54,57
Width of End Reed	L1,L2	1~20

Rapier and projectile looms reed
Name	Code	Scale
Type	Flat Reed/Double Reed
Material	Alloy aluminum baulk, high carbon dents, SS coiling, strong adhesive material
Characteristic	Flat lubricity, dents array uniform, no scar, no burr
No. of Reed		20~240/10cm
Total Width	L	<6000
Useful Width	L1	customized
Total Height	H	90~180
Width of Dents	b	2.7/3.0/4.0
Height of Top Baulk	h1	10/12
Height of Bottom Baulk	h2	18/20/26
Thickness of Baulk	d	6/8

Water Jet Reed
Name	Code	Scale
Material	SS dents and SS end dents
Characteristic	Reed eye uniform, dents bright, high resistance abrasion
No. of Reed		20~260/10cm
Total Width	L	<6000
Useful Width	L1	customized
Total Height	H	90~180
Width of Dents	b	2.2/2.5/2.7/4.0
Height of top baulk	h1	12/18
Height of bottom baulk	h2	18

Why Choose Us
Regarding the package & delivery
Company Profile
Tongda Group , the vice president company of CTMA. specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has 7 branch companies, mainly produces blow room, cotton carding machine, draw frame, Roving frame, rotor spinning machine, ring spinning machine, water jet loom, nonwoven machinery etc. The company has built a complete infrastructure to support a full effort for product research and development to satisfy the needs of the marketplace. Production capability for cotton machinery and spinning machinery products sustains an annual quantity of 20,000 units of various models.Tongda has been growing steadily since 1952 when the spinning machine were developed. Tongda places its focus on becoming a professional supplier of Textile machinery and new materials with continuous development of modern ergonomic designs, a reliable service support network, and an efficient global network of logistics. Today, Tongda machines are being widely used by thousands of cotton and yarn, textile manufacturers. Along with product development, Tongda has been awarded technology patents. Special techniques in design and manufacturing have also been perfected.Tongda is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. Tongda will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
Certifications
Our Exhibitions
FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.

---
