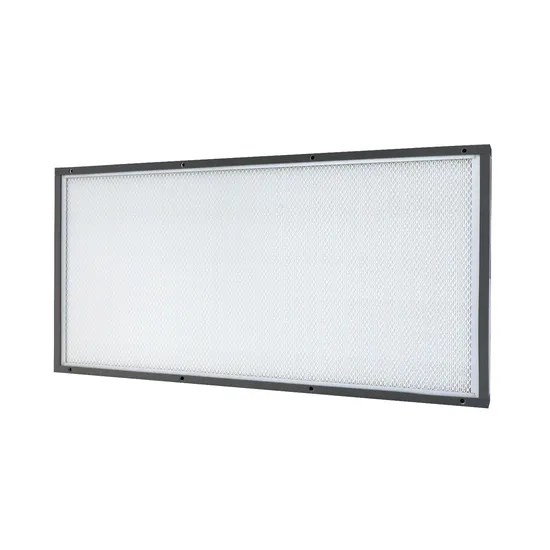

H13 H14 Filter Element Conditioning Air Filter HVAC for Hosptail Semiconductor U13 U14 U15 U16 Air Filter 99.97%, 99.99% HEPA Air Filter

US$15.58-36.85 20 Pieces (MOQ)

Basic Info.

Model NO.
H14
Medium Material
Fiberglass
Efficiency
H14
Filtration Grade
ULPA Filter
Type
Panel Filter
Color
Customizable
Frame
Aliuminum
Certification
ISO9001/ISO14001/UL
Filter Screen
Deep-Pleated Ultra Thin Filter Screen
Transport Package
Carton
Specification
customizable
Trademark
CATC
Origin
China
HS Code
8421999000
Production Capacity
5000/Month

Product Description

Product Description Our separator type HEPA filters are mainly used in general industry, semiconductor, electronics, pharmaceutical, food processing, laboratory Settings, healthcare and other fields, as the end of the filtration system, effectively remove small particles in the air to ensure safe production.Available in 50mm, 75mm, 100mm,150mm,292mm depths.The dimensions can be customized according to the requirements.With gasket, or with gel sealing can be choosed.Microfine glass media with hot-melt adhesive separator allow high filteration area with lower pressure drop.95% at 0.3µm to 99.99995%at 0.12µm at most penetrating particle size (MPPS).
Nominal size
W×H×D ( in.)
Actual size
W×H×D
( mm)
Filter Rating (EN779:2012)Air flow (m³/h)InitialP.D.
(Pa)
Recommended
Final P.D.(Pa)
12×24×12305×610×292
H11
1700
250

≤500
12×24×6610×610×1501630
24×24×12610×610×2923400
12×24×12305×610×292
H13
1700
350
12×24×6610×610×1501630
24×24×12610×610×2923400
12×24×12305×610×292
H14
1700
350
12×24×6610×610×1501630
24×24×12610×610×2923400

★ 50mm,75mm,100mm thickness are also available. Other sizes and air flow are available on request.
Features-Multiple frame materials to choose from: aluminum, galvanized iron, stainless steel to meet the needs of different industries, environments, and costs.
-Multiple frame thicknesses to choose from: 50mm, 75mm, 100mm, 150mm, 292mm, to meet different customer needs.
-High filtration efficiency and reliable product quality: According to strict EN1822 standards, H13 achieved a significant level of 99.95% in the most penetrating particle size (MPPS), while H14 achieved an impressive 99.995%
-No leakage detection: Each product undergoes smoke leakage detection before leaving the factory, Detailed Photos
Main products Our Main products:
Filter cotton: Coarse filter cotton, Paint Fog Felt cotton, Booth Ceiling cotton;
Primary filter: Initial effect flat air filter,Primary folding air filter, Initial effect paper frame air filter, High temperature resistant primary air filter , Activated carbon primary air filter;
Medium-efficiency air filter: Bag air filter, Green and white cotton air filter;
Hepa filter: Mini-Pleat filter, Deep-Pleat filter,W type high efficiency air filter, High temperature resistant efficiency air filter, Liquid tank high efficiency air filter;
Air purify equipment: FFU, Efficient air supply outlet, Ultra-thin integrated air outlet ,Delivery window, Air shower.
Our products are widely used in Medical electronics, clean room, laboratory,HVAC System,Automobile manufacture,nuclear industry and other industries of air purification.
CertificationsProduction line Air filters are an essential part of our daily lives and are a necessity when it comes to maintaining our health and well-being. Our factory specializes in manufacturing high-quality air filters that are designed to provide superior protection against harmful airborne particles and pollutants.
Our superior air filters are designed to provide maximum protection against dust, pollen, allergens, and other airborne contaminants that can negatively impact our health. Our state-of-the-art manufacturing facilities and cutting-edge technology ensure that our air filters are among the most effective on the market today.
Not only are our air filters effective, but they are also affordable. Our customer-centric approach ensures that we provide our customers with the highest quality products at competitive prices. With our focus on quality and affordability, our customers can rest assured that they are getting the best value for their money.
Our commitment to providing excellent customer service has made us a trusted provider of air filters to homes and businesses throughout the world. Our highly knowledgeable and experienced customer service team is always available to help answer your questions and provide you with the guidance you need to find the right air filter for your needs.
We take great pride in our commitment to quality, affordability, and customer satisfaction. We understand the importance of breathing clean air and are dedicated to helping our customers maintain a healthy and safe environment. So, if you're looking for high-quality air filters that provide superior protection at an affordable price, look no further than our factory. Let us help you breathe clean air easier today.
Packaging & Shipping
Company Profile Shujiajing Environmental Technology Co., Ltd., established in 2020 , the company has evolved into a comprehensive large-scale private enterprise, specializing in environmental technology and electromechanical equipment. Our expertise includes technical development and transfer, design and construction of water conservancy and hydropower projects, electromechanical engineering, and water treatment projects. Additionally, we engage in research, processing, and sales of aluminum profiles, hardware products, automation equipment, and accessories (excluding plastic products). Our diverse portfolio also encompasses new materials, electromechanical equipment, electronic components, fiberglass products, construction materials, and environmental protection materials. Our products have gained international recognition, being exported to countries such as South Korea and Vietnam.
After Sales ServiceFAQ
Q1: Do you provide samples?
A2: Yes, free sample can be provided but customer needs to pay for the shipping costs.
Q2: Can the product be customized?
A2: Yes, customized filters are available.
Q3: How long is the delivery time?
A4: It depends on the order quantity. Usually it takes about 7 to 15 working days after receiving your deposit.
