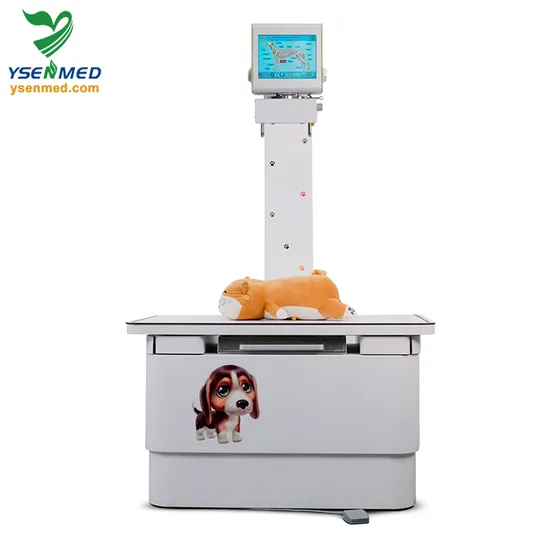

Medical Equipment Ysx050-B Medicalb Use 5kw Veterinary X-ray Machine with Table

US$5,250.00-13,650.00 1 Piece (MOQ)

Basic Info.

Model NO.
YSX050-B
Material
Metal
Certification
ISO13485
Power Type
Electric
Group
Adult
Power Supply
AC220V±10%, 50/60Hz±1Hz
Maximum Output Power
5kw
Ma Adjustable Range
32-100 Ma
Mas Adjustable Range
0.32~315mas, Stepping R’10 or 0.4
Kv Adjustable Range
40kv~110kv, Continuous Regulation, Stepping 1kv
Exposure Time
0.01~6.3s
X-ray Tube Focus
1.8*1.8mm
Rotating Speed / Heat Capacity
2800prm/42khu
Generator Frequency
30kHz
Radiography Table
Width: 70cm, Length: 140/120cm (Either)
Software
Veterinary Software
Laptop Parameter
R3-4300u Processor, 8g Running Memory, 256g Solid
Transport Package
Plywood Case
Trademark
Ysenmed
Origin
China
Production Capacity
1000 PCS/Year

Product Description

YSX050-B Medicalb Use 5kW Veterinary X-ray Machine with Table
Model number YSX050-B
Maximum output power 5kW
Power supply AC220V±10%, 50/60Hz±1Hz
Power 220V/50Hz(Wire diameter >4mm2;Internal resistance <0.5Ω)
mA adjustable range 32-100 mA
mAs adjustable range 0.32~315mAS, stepping R'10 or 0.4
kV adjustable range 40kV~110kV, continuous regulation, stepping 1kV
Exposure time 0.01~6.3s
X-ray tube focus 1.8*1.8mm
Rotating speed / Heat capacity 2800prm/42kHU
Generator frequency 30kHz

Flat panel parameter		 Imaging Size 17*17,14*17inch (wired and wireless)
Pixel Pitch 140um
A/D Conversion 16bits
Spatial Rresolution 3.6lp/mm
Radiography table Width: 70cm, length: 140/120cm (either)
Software Veterinary software
Laptop parameter R3-4300U processor, 8G running memory, 256G solid state drive
