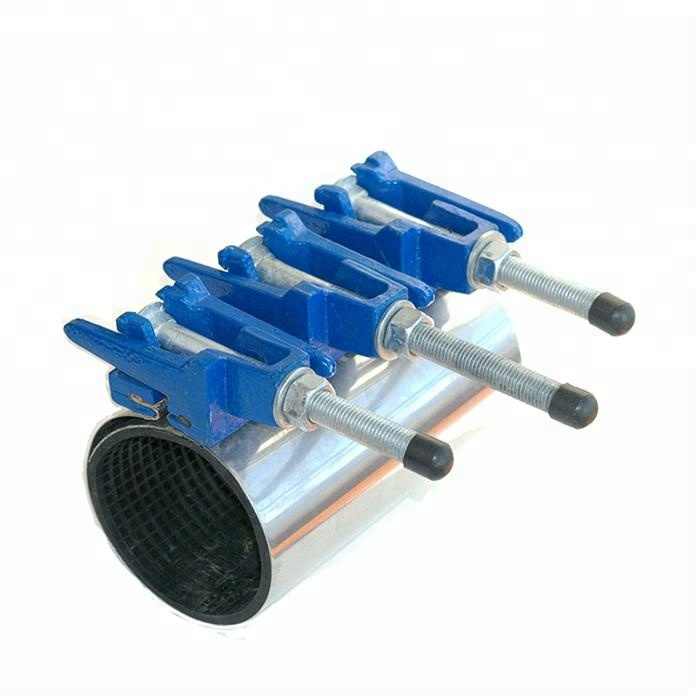

Repair Clamp For Broken Or Leaking Pipeline, Suitable For CI, DI, Steel/PE And PVC Pipe

Product Details

Product Description

Product Description
Product Description
Materials & Relevant Standards
BODY : Stainless Steel
BOLT : Carbon Steel Zinc Plated
HEAD : Ductile Iron
Gasket :EPDM Or NBR

SIZE	PN	LENGTH(Mm)	SIZE	PN	LENGTH(Mm)
59-67	PN16	200mm-600mm	202-212	PN16	200mm-600mm
65-73	PN16	200mm-600mm	218-228	PN16	200mm-600mm
69-76	PN16	200mm-600mm	222-233	PN16	200mm-600mm
75-83	PN16	200mm-600mm	229-239	PN16	200mm-600mm
86-94	PN16	200mm-600mm	236-246	PN10	200mm-600mm
91-98	PN16	200mm-600mm	248-258	PN10	200mm-600mm
94-102	PN16	200mm-600mm	250-260	PN10	200mm-600mm
108-118	PN16	200mm-600mm	252-263	PN10	200mm-600mm
113-121	PN16	200mm-600mm	261-271	PN10	200mm-600mm
121-131	PN16	200mm-600mm	271-281	PN10	200mm-600mm
126-136	PN16	200mm-600mm	280-291	PN10	200mm-600mm
132-142	PN16	200mm-600mm	288-298	PN10	200mm-600mm
145-155	PN16	200mm-600mm	298-309	PN10	200mm-600mm
151-161	PN16	200mm-600mm	300-310	PN10	200mm-600mm
159-170	PN16	200mm-600mm	304-314	PN10	200mm-600mm
166-177	PN16	200mm-600mm	321-331	PN10	200mm-600mm
170-180	PN16	200mm-600mm	333-343	PN10	200mm-600mm
174-184	PN16	200mm-600mm	340-351	PN10	200mm-600mm
179-189	PN16	200mm-600mm	348-358	PN10	200mm-600mm
189-199	PN16	200mm-600mm	356-366	PN10	200mm-600mm
