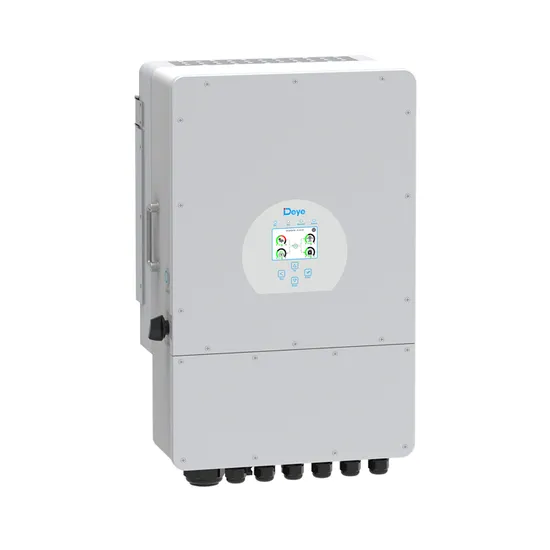

Deye Three Phase Hybrid Inverter Sun-8K-Sg04lp3 8kw 10kw 12kw Solar Inverter with Battery

US$1,069.00
1-9 Pieces
US$947.00
10+ Pieces

Basic Info.

Model NO.
SUN-(8-12)K-SG04LP3
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001
Brand
Deye
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Application
Solar Power System
Certificate
ISO 9001/CE/IEC/TUV
Output Current
20.8-35A
MPPT Efficiency
99.5%
Current Harmonic Distortion
Thd<3% (Linear Load<1.5%)
Display
LCD Screen
Input Voltage
100~500V
Protection Level
IP 65
Self-Consumption
<1W
Topology
Transformerless
Cooling Concepet
Smart Cooling
Communication with BMS
RS485; Can
Transport Package
Carton
Specification
8kw/10kw/12kw
Trademark
Deye
Origin
China
Production Capacity
50000piecs/Year

Product Description

Model SUN-8K-SG04LP3 SUN-10K-SG04LP3 SUN-12K-SG04LP3
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40~60V 40~60V 40~60V
Max. Charging Current (A) 190A 210A 240A
Max. Discharging Current (A) 190A 210A 240A
Charging Curve 3 Stages / Equalization
External Temperature Sensor Optional
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. AC Output Power (W) 10400W 13000W 15600W
PV Input Voltage (V) 550V (150V~800V)
MPPT Range (V) 200V-650V
Start-up Voltage (V) 160V
PV Input Current (A) 13A+13A 26A+13A 26A+13A
No.of MPPT Trackers 2
No.of Strings Per MPPT Tracker 1+1 2+1 2+1
AC Output Data
Rated AC Output and UPS Power (W) 8000W 10000W 12000W
Max. AC Output Power (W) 8800W 11000W 13200W
Peak Power (off grid) 2 times of rated power, 10 S
AC Output Rated Current (A) 12A 15A 18A
Max. AC Current (A) 18A 23A 27A
Max. Continuous AC Passthrough (A) 50A
Output Frequency and Voltage 50/60Hz; 230/400Vac (Three phase)
Grid Type Three Phase
Current Harmonic Distortion THD<3% (Linear load<1.5%)
Efficiency
Max.Efficiency 97.60%
Euro Efficiency 97%
MPPT Efficiency 99.90%
Protection
PV Input Lightning Protection Integrated
Anti-islanding Protection Integrated
PV String Input Reverse Polarity Protection Integrated
Insulation Resistor Detection Integrated
Residual Current Monitoring Unit Integrated
Output Over Current Protection Integrated
Output Shorted Protection Integrated
Output Over Voltage Protection Integrated
Surge protection DC Type II / AC Type II
Certififications and Standards
Grid Regulation IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
Safety EMC / Standard IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
General Data
Operating Temperature Range (ºC) -25~60ºC, >45ºC Derating
Cooling Smart cooling
Noise (dB) <30 dB
Communication with BMS RS485; CAN
Weight (kg) 36.8
Size (mm) 422W×658H×281D
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 years
APP Interface
Safe Package
