Automatic Stone Calibrating and Line Polishing Machine for Processing Quartz Granite Marble Man-Made Stone Grinding and Polishing

US$50,000.00-280,000.00 1 Set (MOQ)

Basic Info.

Model NO.
AKM-D24(10+8+6)/2200
Type
Stone Polishing Machine
Control
PLC
Automation
Automatic
Precision
High Precision
Application
Granite, Marble, Quartz
Type for Grinding Machine
Disc Grinding Machine
Grinding Machine Type
Barrel Polishing Machine
Grinding Method
Wet Grind
Certification
ISO, CE
Condition
New
Polishing Heads Qty
24 Heads
Processing Material
Quartz/Granite
Head Type
Diamond Fickert Head
Installation
Available
Traning
Available
Transport Package
Container by Sea
Specification
18650x3980x2600mm
Trademark
AOKE
Origin
China
HS Code
8464209000
Production Capacity
100 Sets/Year

Packaging & Delivery

Package Size
1900.00cm * 400.00cm * 260.00cm
Package Gross Weight
45000.000kg

Product Description

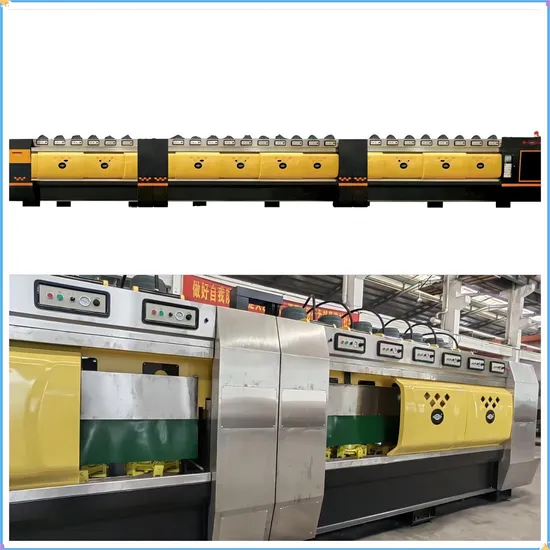

Stone Calibrating and Polishing Line Machine for Quartz and Granite
Fully Automatic for quartz and granite slabs
Polishing machine of 24 heads by 3 bridge structure, 6PCS fickert head
Imported NSK shaft, Servo control system, Xingxing speed reducer
Fast speed of 3.5-4.0 m/min
Stone Line Polishing Machine AKM-D24(10+8+6)/2200, this model adopts three-parts crossbeam structure: 10+8+6 heads for each part, which make it move faster, easier and more flexible. Its intelligent control technology enables the machine to polish slab in fast speed, high efficiency and good stability.
By using servo motors, the swing of crossbeam bridge is more stable, more accurate and much faster. At the same time, the distribution of grinding heads is more flexible and adaptable, because 24 spindles installed in 3 bridges are more flexible and suitable for different slabs.
By using automatic loading lift, it saves labor cost. By using Xingxing speed reducer, the transmission can be more stable and reliable.
Due to EtherCAT communication control unit and control system, the polishing process is highly automatic and intelligent, to ensure maximum accuracy, flexibility, stable performance and high efficiency.
TECHNOLOGY PARAMETER
SPECIFICATIONS AKM-D24(10+8+6)/2200
Number of Grinding Head 24 PCS
Polishing Thickness 10-50mm
Polishing Width 500-2200mm
Adjustable Speed of Conveyor Belt 0.5~4m/min
Swing Speed of Crossbeam 0~43m/min
Water Consumption 45m³/h
Air Consumption 25m³/h
Power of Main Motor 15KWx24
Total Power 386KW
Machine Dimension(LxWxH) 18650x3980x2600mm
Gross Weight 43000KGs
