China Manufacturing HDPE PP PVC Double Hollow Wall Polyethylene Spiral Wound Pipe Extruder Extrusion Production Machine

Product Description

Large diameter Buried Non-Pressure Pipe Extruder Production Machine
HDPE hollow wall spiral pipe extrusion line
Plastic HDPE PP Double structural wall spiral winding corrugated Pipe Extrusion Manufacturing Machine
Plastic storage tank making machine
HDPE Hollow Wall Spiral Winding Structured Wall Pipe Plastic Extruding Machinery
HDPE Large Diameter Hollow Wall Winding Pipe Extrusion Line/Winding Pipe Making Machine
PEHD Large Caliber Profiled Wall Coiled Pipe Production Machine.
Ribbed reinforced spiral winding corrugated pipe making machine.
Solid wall spiral winding pipe extrusion line.
Solid wall spiral winding jacketing pipe extrusion machine.
Steel-plastic spiral winding composite pipe extrusion line.
*Double-walled corrugated pipes, with "H" structure.*DN200-DN5000mm
*SN2, SN4,SN8,SN12.5, SN16
HDPE extrusion spiral winding sewer pipes Application:
- Sewage and drainage pipes
- Storm water drainage pipes
- Rain water sewage plastic pipes
- Cable protection pipes
- Civil construction sewage pipes
-Chemical storage tank
- Liquid storage tank
- Manhole wellbore

Type 1: HDPE/PP/PP-H Doube structural hollowness wall spiral winding pipe extrusion production line

1. HDPE Large diameter spiral pipe (diameter from 200mm-4000mm) has high ring stiffness and high brunt intensity with "H" structure. It can be used for approximate 50 years and has many advantages such as low cost assembly and easy operation, with standing pressure, corrosion resistant such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe nowadays. It is being widely used as sewage and drainage pipe.
2. HDPE large diameter hollow wall winding pipe machine .**The HDPE large diameter hollow wall winding pipe extrusion line is designed with advantaged technology and improved based on long time practice experience. Diameter range can be 200-3000mm. **Our machine is featured with comfortable operation and high performance/price ratio. **Due to our special design, it is very convenient in transportation and installment. **We also developed energy saving method to save energy consumption in large diameter hollow wall winding pipe extrusion. **By adopting two sets of high efficient extruders, the output capacity is big. Our winding pipe extrusion line can make pipe with ring stiffness 4, 8, 12KN/m2. All parts precisely designed and manufactured so the whole extrusion line works stably and reliably. **Special design for easy maintenance. **The HDPE large diameter hollow wall winding pipe extrusion line is mainly used for producing large diameter hollow wall winding pipe.
3.Technical parameter

Model	SMSG-800	SMSG-1200	SMSG-1600	SMSG-2200/2400	SMSG-3000/4000
Extruders	SJ65+SJ55	SJ90+SJ65	SJ100+SJ65	SJ120+SJ90	SJ150+SJ100
Output capacity(kg/h)	250-300	350-400	500-600	750-850	1000-1500
Pipe diameter(mm)	200-800	400-1200	800-1600	1200-2200 800-2400	2000-3000 2000-4000
Production speed(m/h)	2-16	2-12	1-6	0.5-5	0.3-3
Installed power(kw)	180	250	300	400	500

4.Plastic structural wall spirally winding pipe Production Machine Pictures
Plastic vacuum loader and drying hopper, single-screw extruder or double-screws extruder High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality extrusion.
(1) Motor brand: Siemens (2) Inverter brand: Delta (3) Contactor brand: Siemens (4) Relay brand: Omron (5) Material of screw and barrel: 38CrMoAlA. (6) Heating method: Ceramic or cast aluminum heating

HDPE Profile extrusion die mouldThe mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.


Vacuum calibration water tank and Water cooling tank
It is stainless steel materials.
It could be water leaching cooling way or water spray cooling way according pipe diameters and extrusion speed. (1) Vacuum pump power : 4 kw
(2) Water pump power: 2.2 kw*2
(3) Spray cooling: ABS nozzle; Stainless steel pipe
(4) Stainless steel material: 1Cr18NiTi
(5) Diameter of tank : Customized
(6) Length of tank: 6 m

HDPE Plastic Pipe Haul-off machineThe main function of the tractor is to clamp the pipe after cooling and forming, and transport the pipe forward smoothly and evenly by providing a certain traction speed and traction force.
HDPE Plastic pipe cutting machine
The special cutting machine for PVC pipe adopts rotary clamping device, is suitable for different pipe diameters, avoids the trouble of frequently changing clamping device. (1) Cutting motor power: 1.5 kw
(2) Cutting scope: Customized
(3) Control means: Pneumatic control

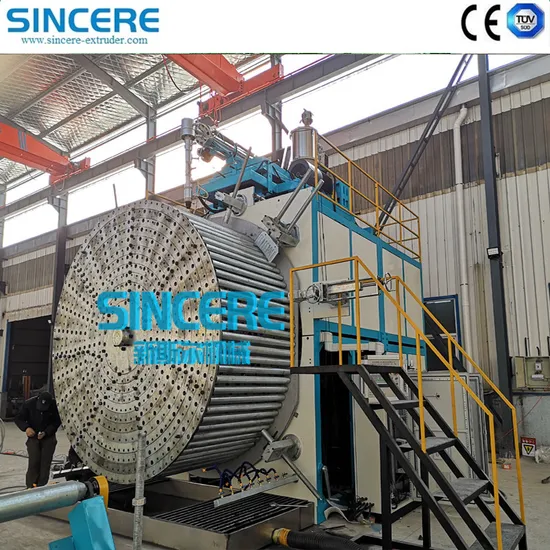

Plastic profiled wall spiral winding machine The spiral winding machine, which ar produced by Qingdao Sicere Plastic mahcinery,efficient and energy-saving, stable operation, easy to install and disassemble
Type 2: Inner Ribs reinforced spiral winding corrugated pipe extrusion machinery
Type 3: HDPE PP-H storage tank machine
Solid wall spiral winding pipe extrusion line.
Spiral winding insulation jacket pipe production machine.
Trenchless Plastic Sinking well jacking pipe machinery.
type 4: Steel belt reinforced hdpe spiral winding pipe extrusion making machine line.
Steel+HDPE spiral winding corrugated pipe production equipment manufacturing plant.
5. What can the machine produce?It can be used for approximate 50 years and has many advantages such as low cost assembly and easy operation, with standing pressure, corrosion resistant such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe nowadays. It is being widely used as sewage and drainage pipe.

6.Our service
*We can provide customers with perfect installation and use services.
*We can provide customers with satisfactory products according to their needs.
*When problems arise during the use of products, we can provide appropriate solutions.
*The warranty period is one year, except man-damage.
*Welcome to visit our factory and looking forward to win-win cooperation.
7.Our cooperation process:

---
