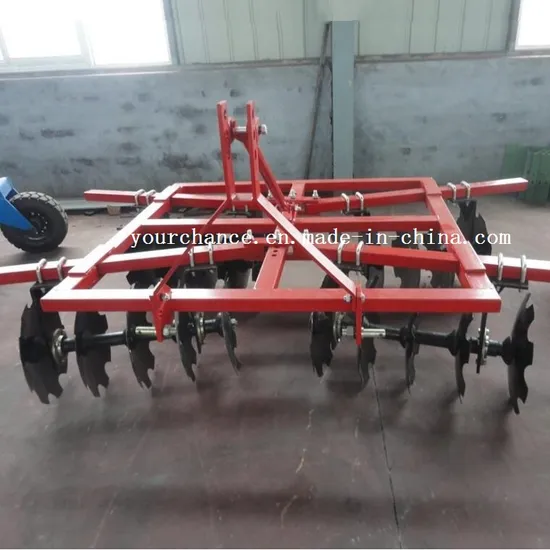

Europe Hot Sale 1bqd-3.6 70-90HP Tractor Mounted 3.6m Width light Duty Disc Harrow

Product Description

Europe hot sale 1BQD-3.6 70-90HP Tractor mounted 3.6m width Ligh duty Disc harrow
1BQD series Disc harrow Main Features, Usage, Specification and Technical parameters:
1BQD Series Opposed Light-duty Disc Harrow
Main Features and Usage:
1BQD series opposed Light-duty Disc Harrow is designed and manufactured by combined with foreign technology, it is mainly used for crushing and loosing the soil after ploughing, presowing ploughing, chessom, mixing soil and fertilizer, etc.
The machine has the features and advantages of reasonable structure, firmness and durability, easy to use and maintain, eliminating tractor bias traction, etc.
Our 1BQD series Disc Harrow Main Advantages :
1. It is a mounted light-duty opposed disc harrow for 30-80hp tractor .
2. Fit the scraper for each disc blade to clean the objects.
3. 65 Mn Steel disc blade of 460*3mm hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade .Front disc set made of notched discs, rear disc set made of round discs;
4. Rigid steel frame;the main beam is 50-70 mm ,strong and durable
5. High Quality square shaft made of quenched and tempered No.45 steel;the size is 28*28 mm.
6. Bearing is covered by sealed bearing seat to protect it from sand, dust etc.
Main Specifications and Technical Parameters :

Model	1BQD-1.6	1BQD-2.0	1BQD-2.4	1BQD-3.0	1BQD-3.6
Working width (m)	1.6	2.0	2.4	3.0	3.6
Working depth (mm)	100~140
Discs quantity (Pcs)	16	20	24	30	36
Disc diameter (mm)	460	460	460	460	460
Weight (kg)	330	380	440	510	580
Matched tractor power(HP)	30	45	60	60-70	70-80
Linkage	Standard three-point mounted

High quality 1BQD series Disc harrow have ISO,CE, PVOC COC, CO etc certificates:
1BQD series Disc harrow by Iron crate case packing :
Best price will be quoted for you as soon as receive your Requirement !

---
