Product Details
Product Description
Product Description
Specification

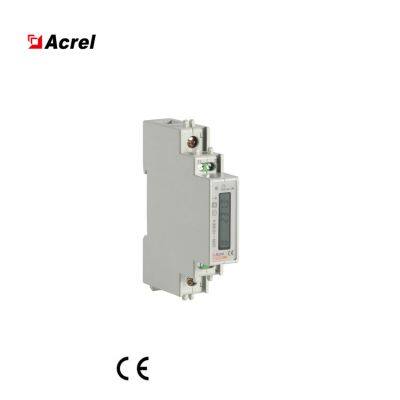

ADL10-E Single Phase Electric Power Meter Power /Factor Meter
ADL energy meter is designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 12 months, checks the 31st harmonic content and the total harmonic content, realizes the remote communication and the remote control with switching input and relay output and boasts the alarm output. It is fitted with RS485 communication port and adapted to MODBUS-RTU. ADL can be used in all kinds of control systems, SCADA systems and energy management systems.
Technical Parameters
| Model | Accuracy | Input voltage | Input current | Pulse constant |
| ADL 10-E | Class 1 | 220V | 10(60)A | 3200imp/kwh |
| ADL 100-ET | Class 1 | 220V | 10(60)A | 1600imp/kwh |
| ADL 100-EY | Class 1 | 220V | 10(60)A | 1600imp/kwh |
| ADL 3000-E | Class 0.5 | 3*57.7/100V,3*100V
3*220/380V,3*400V
| 1(6)A;10(80)A | 6400imp/kwh
400imp/kwh
|
| ADL 300-EY | Class 1 | 3*220/380V,3*400V | 1.5(6)A;10(60)A | 6400imp/kwh
400imp/kwh
|
Small Compact Size
● Dimension (L*W*H): 18mm*88mm*70mm
Diverse Electricity Parameters Measurement
● U (Voltage)
● I (Current)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
● kWh (Kilowatt-hours)
● kVarh (Kilovar-hours)
LCD Display
● 8 digits
DIN Rail Installation
● 35mm standard DIN rail
Wiring and Details
