Big Bag Laminating Machine

Product Description

Product Description
1. General
This machine is suitable for coating PE or PP film on PP or PE woven fabric, kraft paper, non-woven fabric, or laminating PP or PE woven fabric with BOPP, CPP, kraft paper. Product Parameters
2. Basic Date

1) Extruding screw type 2) Dies width 3) Laminating width 4) Laminating thickness 5) Laminating linear speed 6) Melting capacity 7) Installed total power 8) Power consumption 9) Overall dimension (L×W×H)

: 120/28 : 2400mm : 2200mm : 0.02-0.06mm, ±10% : 20-80m/min : Max. 200kg/hr : 124kw : Approx. 80kw : 10000mm×8000mm×3000mm

Note: Above data depends on specification and chemical property and quality of raw material.
3. Composition of the Standard Machine

1) Granulate feeding unit 2) Extruder (Ø120mm) 3) Filter 4) Flat die (2300mm)	: 1 unit : 1 unit : 1 unit : 1 unit	0.75kw 37kw+40kw 8kw 16kw
5) Double station unwinding unit 6) Laminating unit 7) Double station rewinding unit	: 1 unit : 1 unit : 1 unit	--- 11kw+1.5kw 7.5kw
8) Electrical and control system	: 1 unit

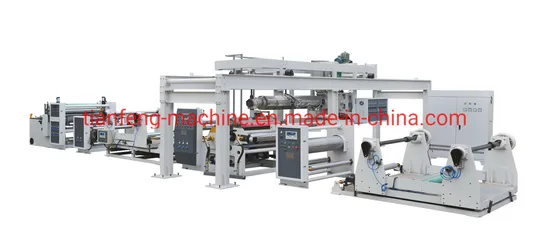

Detailed Photos
After Sales Service
Pre-sales issues
_____
01. How to get in touch with us?
Direct to the company:Zhejiadun Road,Aojiang Town,Wenzhou City,Zhejiang Provice,China
02. How to answer technical guidance?
For some customers who need non-standard equipment, we will communicate with the company's relevant technical personnel according to the customer's specific requirements, taking into account the technical feasibility and production costs, and give customers solutions.
03. How to make a quotation?
Based on our company's research and development costs, production costs and customer purchases, we conduct calculations to determine the price of the product.
04.How to install machines
We will dispatch technicians for the installation and the start up commissioning if clients request.

---
