Chinese Small Vertical Axis Wind Turbine Generator 600W 12V 24V Wind Turbines

Product Description

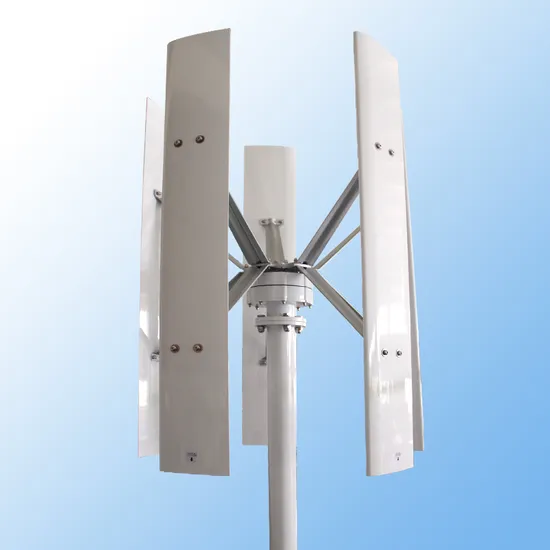

China Factory Small Wind Turbine Generator 600W 12V 24V Wind Turbines For Home
Detailed Photos
1,Vertical axis wind turbine are better able to harvest turbulent air flow found around buildings and other structures.
2,VAWTs are ideal for both rural and urban applications, including roof top installations. Depending on the shape of the roof, the wind flow over the roof can be concentrated, leading to an increased energy output.
3,Installation and use is simple.

Product Parameters

Model	RC-600H
Rated Output	600W
Peak Output	610W
Rated Voltage	12V/24/48V AC
Start-up Wind Speed	2.5m/s
Cut-in Wind Speed	3.5m/s
Rated Wind speed	12m/s
Survival Max. wind	45m/s
Number of Blades	5
Rotor Diameter	0.95m
Rotor height	1.6m
Blade Material	Casting aluminum alloy
Generator Type	3-phase Maglev with high performance Neodymium Magnets
Generator case	Casting aluminum alloy
Controller Type	PWM/MPPT
G.W	46kg
Tower Connector	Flange
Working Temp. range	from -40°C to 60°C
Product Life	15 years
Warranty	1 years
Applications	solar & wind hybrid lighting, off-grid power system etc.

Installation Instructions
Certifications
Company Profile


FAQ
Q1: Does the price include or exclude controller, inverter?
A: The Price is only for wind turbine, if you need whole system which includes controller
and inverter, batteries and pole, pls contact our sales for a detail quotation.

Q2: What's the difference between 3blade and 5blades wind turbine?
A: Our small wind turbine have 3blades and 5blades model. If local wind speed is slow
suggest to choose 5blades model, it's easier to start to run.

Q3: How can i fix wind turbine on the pole ?
A: For small horizontal axis wind turbine with pole connection, we have flange and hoop
for choice. The later one is easier to fix on the pole. Pls let the sales know your choice.
Q4: How to protect wind turbine during strong wind?
A: All the wind turbines are protected by controller. While the battery is full or wind speed is very fast,
the controller would start a short circuit to slow down the wind turbine. Meanwhile, our model from
RC-2K to 10K wind turbines tail could fold to slow down the running speed as a protection as well.

Q5: What's the warranty ?
A: Wind turbine warranty is 1 year. lf it happens, we will send you spare parts for maintance,
For distributors, we will prepare few spare parts in the package as a storage.

---
