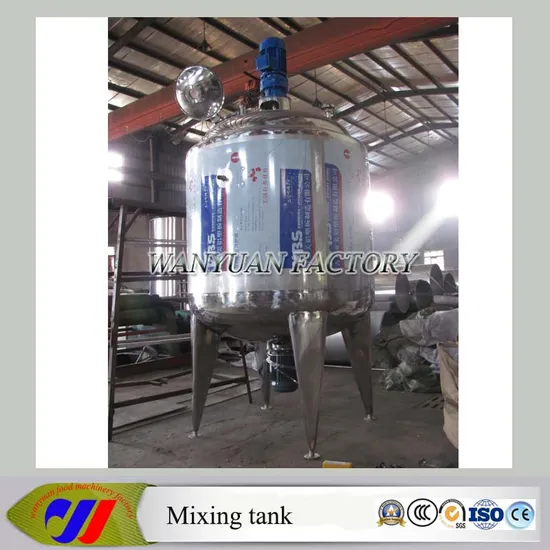

Stainless Steel Double Layer Jacketed Mixing Tank

Product Description

Stainless Steel Double Layer Jacketed Mixing Tank
1. Made of stainless steel
2. Mixing milk, juice, or any other viscous liquid
3. Customized mixing tank capacity
high shear mixing tank
1. cream mixing tank
2. cosmetic mixing tank
3. washing liquid mixing tank
high shear mixing tank made of stainless steel detail forthe viscous fluid mixing tank The temperature is regulated by changing its value for heating/cooling . 1. With manhole 2. Made of full stainless steel SS304 or SS316 3. With jacketed for cooling water and hot water or steam / glycol ready cooling layer or cooling coil 4. Scraper agitator, the motor for the agitator was fixed to the middle of the tank top. 5. Homogenize motor was fixed at the middle of the tank bottom. 6. Total capacity is 500L to 2000L 7. With CIP cleaning ball Stainless Steel Mixing tank
Mixing Tank <mixing tanks> mainly made of stainless steel, used for mixing different liquid together. Also, you can use this mixing tanks to mix liquid and power to make a mixture. Mixing tanks can be with different mixing speed. Such as 36rpm, 60rpm fixed mixing speed. But due to some production reqeust, you may need the mixing tanks with variable speed, such as 8 to 140rpm, 40 to 200rpm mixing speed, or 200 to 1000 rpm mixing speed. In special reqeust, we can use VFD<Variable Frequency Drive> to meet your special mixing speed request. Stainless Steel Double Layer Jacketed Mixing Tank
Our Mixing tank capacity can be 50L, 200L, 500L, 2000L or any other capacity you need.

volume (L)	Dimension (D× h ) (mm)	Total height (mm)	Diameter Of inlet & outlet	Heat preservation layer (mm)
500	840 × 1000	2250	38	60
600	920 × 1000	2300	38	60
700	990 × 1000	2300	38	60
800	950 × 1220	2500	38	60
900	1010 × 1220	2500	38	60
1000	1060 × 1220	2550	51	60
1500	1160 × 1500	2850	51	60
2000	1340 × 1500	2900	51	60
3000	1410 × 2000	3400	51	60
4000	1620 × 2000	3450	51	60
5000	1810 × 2000	3500	51	60

---
