Egg Tray Machine Making Machine-Egg Box Making Machinery

Product Description

Paper Egg Tray Making Machine/Egg tray Machine forming machine Product Description
Product Introduction: Egg tray making machine is a kind of environmental protection equipment. It can make egg box, paper egg The pulp paper egg tray machine is controlled by PLC, the degree of the automation is high, and it is easy to learn, service is convenient. Also the scope of the machine is widely. It can produce egg carton, egg box, egg tray, bottle tray, agricultural train seeding cup, industrial production packing.
Four main parts: Paper Pulping system, Forming system, Drying line, Packing system. Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production.
Our forming machines adopt advanced PLC programmable controller; selecting of high quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.
Our Egg Tray Machine production line has Fully Automatic and Semi Automatic two types , both have computer control system. If you don't want this drying system, it is also OK. Then you will have to do the work of drying up the product trays manually.
Chicken eggs can be a staple part of every cuisine from Barcelona to Buenos Aires and have a rich list of nutrients that can make them important to diet plans for all old and young. Due to the marvelous versatility and nutritional profile of the common chicken egg, it is actually in high demand and there are more than 3 billion eggs in transport from hen house to home kitchens at virtually any moment. More information on egg tray making machine in India here.

But unlike most food stuff that could be transported in bulk fairly easily, the chicken egg can be a delicate orb of goodness and should be packed in a special protective tray if it will reach its destination intact. This is why the creation of egg trays is likely to make the visible difference in getting your eggs to the market with time.

If you are looking for a high-quality egg tray making machine, you might have come off to the right place. Within the following post we are going to take a closer look at some of the most important considerations when selecting an egg tray making machine that will fit your purpose and improve your operations. See the egg tray making machine price in Pakistan here.

Model	FC-1*3	FC-1*4	FC-3*4	FC-4*4	FC-3*8	FC-4*8	FC-5*8
Capacity	1000PCS/h	1500PCS/h	2000PCS/h	2500PCS/h	3000PCS/h	4000PCS/h	5000PCS/h
Total Power	32kw	40kw	65kw	82kw	95kw	112kw	121kw
Paper Consumption	80kg/h	120kg/h	160kg/h	200kg/h	240kg/h	320kg/h	400kg/h
Water Consumption	160kg/h	240kg/h	320kg/h	400kg/h	480kg/h	640kg/h	800kg/h
Electric Consumption	18kw/h	32kw/h	45kw/h	58kw/h	65kw/h	78kw/h	95kw/h
Worker	3-4	3-4	4-5	4-5	5-6	3-4	3-4

Features of egg tray machine a. High automation, low labor cost
b. Low production cost
c. Energy saving(by 30%-50% compared with other manufacture)
d. Water saving(complete water treatment system equipped)
e. Efficient Multilayer dryer, saving space(by 33% compared with traditional dryer)
f. Stable final product quality(same weight, same dimention,strong and good appearance)
Systerm compisition of Egg tray making machine

paper egg tray making machine systerm composition	automatic paper molding egg tray making machine
1 Pulp Making System	Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on.
2 Moulding System	Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on..
3 Drying System	Multilayers metal drying line ,Reillo Burner etc .
4 Packaging Machine	Egg tray stacker ,baling press etc .

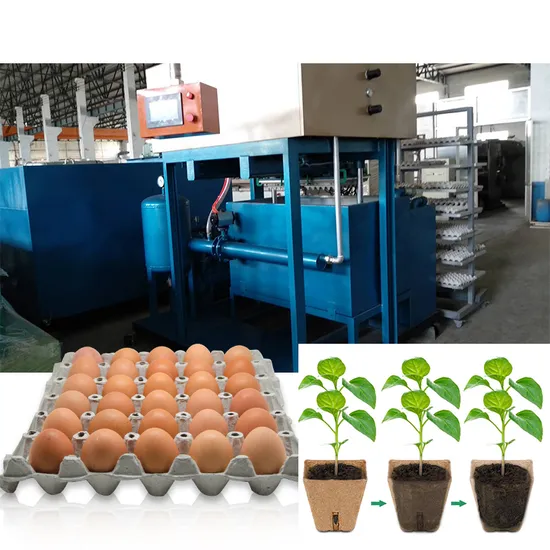

Machine working picture :
Machine working flow:
Finished Product:
This type machine could produce the egg tray,egg box, pizza box, seeds cup,flower pot,industrial tray etc by changing the forming mould and the transferring mould.
Machine used Brand as following:
We are able to customerized the machine motor and electrial parts brand.
Our Service:
1.The warranty period: 1 year Guarantee for the maintance and repairment of the forming machine exclude the parts of quick-wear. The spare parts will be provided according to the client requirement.2.The pre-production:we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc. 3.The installing issue: fuchang will send engineers to customers' place . The customer should help installation, the engineer is responsible for installation, testing and training for 30 days.4.The price:We are a manufacturer and we can provide the considerate price and make sure the quality .

---
