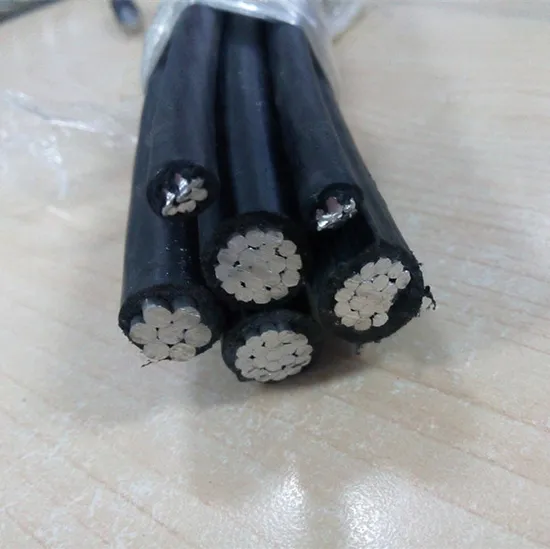

0.6/1kV XLPE Insulated Aerial Bundle 3X50+54.6+16 ABC Cable NFC 33-209 Standard

US$0.10-100.00 500 Meters (MOQ)

Basic Info.

Model NO.
ABC Cable
Current
AC Cable
Insulation Material
XLPE
Sheath Material
PVC
Material Shape
Round Wire
Wire Core Material
Aluminum
Certification
ISO, CCC, CE
Model
ABC Cable
Brand
Yifang
Conductor
Aluminum or Aluminum Alloy
Insulation
XLPE
Neutral Messenger
AAAC
Number of Core
Multi Core
Color
Black
Standard
NFC 33209
Transport Package
Coil, Reel, Drum
Specification
3x50+54.6+2x16, 3x70+54.6
Trademark
Yifang cable
Origin
Henan Zhengzhou
HS Code
8544492100
Production Capacity
3000 Km/Year

Product Description

0.6/1kV XLPE Insulated Aerial Bundle 3X50+54.6+16 ABC Cable NFC 33-209 Standard
Application
The aerial bundled cables designed for fixed installation as overhead power lines up to 1000 V incl.
Cable Standard NFC 33-209
Cable Construction Phase Conductor Neutral Conductor Insulation Assembly
Aluminium conductor, round stranded compressed (RM).
Alloy aluminium conductor (AlMgSi), round stranded compressed (RM).
XLPE. Load-bearing / neutral core - marked with standard and producers phase core - marked with digits 1, 2, 3.
Cores and the neutral, conductor stranded together in right-hand lay, additionally 1, 2 or 3 cores of reduced cross section can be co-stranded.
Twister cable Technical Data
Rated voltage kV 0.6/1
Test voltage Veff kV/Hz 4/50
Laying temperature °C min. -5
Operating temperature °C -30 ~ +90
Conductor temperature °C max. +90
Short-circuit temperature °C/s max. +250 /5
Bending radius (min.) mm 20 × O of cable
Twister cable Dimensions Number of cores x nominal cross section max. conductor- resistance min. breaking load of conductor strand Current rating in the air Outer diameter Total weight mm^2 Ohm/km kN A mm kg/km
2x10 RM 3.080 1.5 38 12.8 93
4x10 RM 3.080 1.5 38 15.4 183
2x16 RM 1.910 2.3 72 14.8 129
2x16 RN + 2x1.5 RE 1.910/12.100 2.3 72 14.8 176
4x16 RM 1.910 2.3 72 17.8 257
4x16 RN + 2x1.5 RE 1.910/12.100 2.3 72 17.8 304
2x25 RM 1.200 3.8 107 18.0 202
2x25 RM + 2x1,5 RE 1.200/12.100 3.8 107 18.0 249
4x25 RM 1.200 3.8 107 21.7 404
4x25 RM + 2x1,5 RE 1.200/12.100 3.8 107 21.7 451
2x35 RM 0.868 5.2 132 20.8 269
2x35 RM + 2x1,5 RE 0.868/12.100 5.2 132 20.8 316
4x35 RM 0.868 5.2 132 25.1 539
4x35 RM + 2x1,5 RE 0.868/12.100 5.2 132 25.1 586
2x50 RM 0.641 7.6 165 23.4 352
2x50 RM + 2x1,5 RE 0.641/12.100 7.6 165 23.4 399
1x54.6 RM + 3x25 RM 0.630/1.200 3.8 107 21.7 507
1x54.6 RM + 3x25 RM + 1x16 RM 0.630/1.200/1.910 3.8/2.3 107/72 24.3 573
1x54.6 RM + 3x25 RM + 2x16 RM 0.630/1.200/1.910 3.8/2.3 107/72 29.7 639
1x54.6 RM + 3x25 RM + 3x16 RM 0.630/1.200/1.910 3.8/2.3 107/72 31.1 705
1x54.6 RM + 3x35 RM 0.630/0.868 5.2 132 25.1 615
1x54.6 RM + 3x35 RM + 1x16 RM 0.630/0.868/1.910 5.2/2.3 132/72 28.1 680
1x54.6 RM + 3x35 RM + 2x16 RM 0.630/0.868/1.910 5.2/2.3 132/72 34.3 748
1x54.6 RM + 3x35 RM + 3x16 RM 0.630/0.868/1.910 5.2/2.3 132/72 35.9 814
1x54.6 RM + 3x35 RM + 1x25 RM 0.630/0.868/1.200 5.2/3.8 132/107 28.1 714
1x54.6 RM + 3x50 RM 0.630/0.641 7.6 165 28.2 741
1x54.6 RM + 3x50 RM + 1x16 RM 0.630/0.641/1.910 7.6/2.3 165/72 31.6 806
1x54.6 RM + 3x50 RM + 2x16 RM 0.630/0.641/1.910 7.6/2.3 165/72 38.6 875
1x54.6 RM + 3x50 RM + 3x16 RM 0.630/0.641/1.910 7.6/2.3 165/72 40.4 940
1x54.6 RM + 3x50 RM + 1x25 RM 0.630/0.641/1.200 7.6/3.8 165/107 31.6 841
1x54.6 RM + 3x70 RM 0.630/0.443 10.2 205 33.0 950
1x54.6 RM + 3x70 RM + 1x16 RM 0.630/0.443/1.910 10.2/2.3 205/72 37.0 1014
1x54.6 RM + 3x70 RM + 2x16 RM 0.630/0.443/1.910 10.2/2.3 205/72 45.2 1083
1x54.6 RM + 3x70 RM + 3x16 RM 0.630/0.443/1.910 10.2/2.3 205/72 47.3 1148
1x54.6 RM + 3x70 RM + 1x25 RM 0.630/0.443/1.200 10.2/3.8 205/107 37.0 1048
1x54.6 RM + 3x70 RM + 2x25 RM 0.630/0.443/1.200 10.2/3.8 205/107 45.2 1150
1x54.6 RM + 3x70 RM + 3x25 RM 0.630/0.443/1.200 10.2/3.8 205/107 47.3 1250
1x54.6 RM + 3x95 RM 0.630/0.320 13.5 240 37.4 1176
1x54.6 RM + 3x95 RM + 1x16 RM 0.630/0.320/1.910 13.5/2.3 240/72 41.9 1243
