Inline Mixing System High Speed Stator & Rotor Unique Design High Tech Patent Machine for Dispersing Liquid Powder Batch Working Mixer with Vacuum Chamber

Product Description

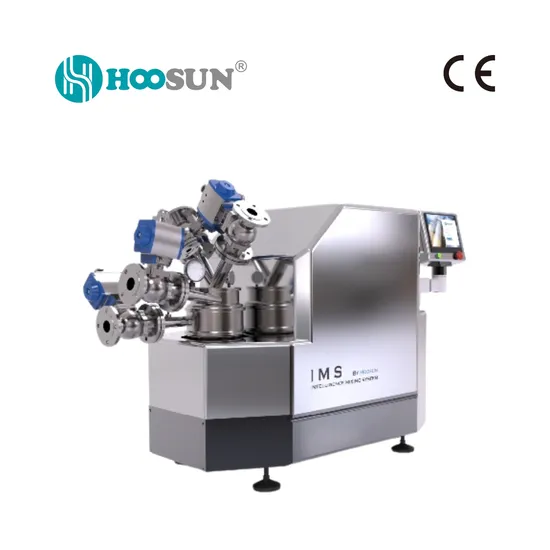

Inline dispersing equipment IMS
Application areas: micro and nano materials, ceramic materials, battery homogenisation, conductive materials, digital inkjet, coatings and inks, etc.
This equipment is a powder and liquid on-line dispersion system. It can pump the liquid to produce high-speed flow, forming a strong vacuum in the dispersion area, directly sucking the powder without loss, and through the special stator-rotor design of high-speed shear slurry, and ultimately the formation of evenly dispersed and narrow particle size distribution of the material.
Vacuum automatic powder suction, powder and liquid mixing efficiently, and particle size distribution is uniform.
Energy saving and consumption reduction, high dispersion efficiency, maximum energy saving of more than 70%.
Vacuum dispersion in closed chamber, no dust leakage pollution
Stable operation and long service life
Flexible and simple operation, easy to achieve automation and intelligence.

Type		IMS1	IMS2	IMS3	IMS4	IMS5	IMS-CNT	IMS-6	IMS-7
Power(kw)		3	4-7.5	11-18.5	22-37	45-90	75-110	110-160	200-250
Rotor maximum speed (rpm)		8000	6000	4000	3000	3000	1950	3000	3000
Treatment tank volume (L)		20-50	100-200	200-1500	1500-8000	8000-15000	8000-15000	15000-25000	25000-40000
Powder suction speed (kg/min)	Bag	1	1~4	2~15	3~20	4~30	4~30	4~30	5~30
	Ton bags, Tank Trucks, Powder Silos	1~4	4~12	6~200	10-400	>1000	>1000	>1000	>1000
Maximum Powder Content (%)		60	60	70	75	80	80	80	80
Liquid Flow Rate (m3/h)		6	15	40	80	>80	>80	130	180
Slurry Flow Rate (m3/h)		2~4	5~10	20~30	30~50	40-60	40-60	50~80	60~100

Company Profile
Hoosun Workshop
Exhibition
Production Line Projects
CE & ISO certification
Signing Ceremony & After-sales service
Our Customers FAQ
Q1: How do l order?A: Make an inquiry to us →Inform us of the use scenario → Receive our product design recommendation→Discuss details→Confirm sample → Sign contract/deposit→ Mass production →Goods ready -→Balance/delivery →Further cooperation.Q2: What about your warranty?A: First of all, before dellvery, our in-house QC will do a comprehensive inspection to show the condition of the goods by testing operation or trial operation.Secondly, our warranty is 12 months from the time of arrval. If the equipment fail, such as the motor, reducer or inverter is damaged, we will replace and repair it free of charge. In case of damage caused by operational error, we will provide technical guidance to customers.Q3: How about your after-sales service? What should I do if something goes wrong during use?A: Whether it is under warranty or not , we will first help you figure out the essence and solve the problem through video conferencing. lf it is under warranty, no doubt we will take care of the problem and provide a new replacement free of charge. If it exceeds the warranty period, we will replace it for you with it cost price, find the most favorable mode of transportation, thereby solving the problem, maximizing your cost savings at the sametime, and provide lifelong maintenance advice and technical guidance.Q4: What are your company's strengths? Because l see that most of the products look very similar.A: Yes , you're right. Similarity of appearance is a problem.In this matter,we mainly do two aspects of work: firt, to ensure the quality of products; in the other hand, improve the professional quality of sales representatives, improve their communication skills, and provide customers with more additional value beyond the product.
Q5: How can l trust you? After all, this is our first cooperation, but I must give you the money before you ship the goods.A: Yes, it's really not easy to choose a reliable supplier among so many suppliers.Because you may have to consider many factors, such as quality safety, price, delivery after-sales service and so on. But don't worry, our company has more than 12 years of experience in this field and we have taken all the factors into consideration for you.
The only thing you need to think about is how to continue to grow in your market, and we'll do the rest.Q6: Can it be customized?A: Yes, the equipment can be customized according to customers' requirements.

---
