Galfan Wire for making gabions Gaviones wire zinc al 10% 2.7 3.4 2.2mm wire diameter

Product Details

Product Description

Product Description

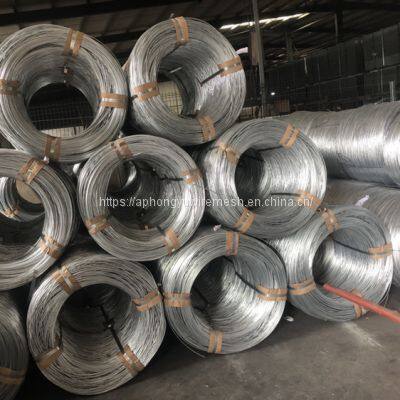

Galfan wire is covered with Zn-Al (Al 5%, Zn 95% or Al 10%, Zn 90%) alloy. Its corrosion resistance performance is about three times stronger than traditional galvanized wire. This is why it can be used to achieve a longer service life than the wires which are made of other materials. Through the replacement of traditional zinc coating with a thinner galfan wire coating, it offers improved weldability and formability properties.
Longer service life than galvanized wire.
Strong corrosion resistance.
Good ductility.
Specifications
Coating material: Zinc and aluminum alloy (Al 5%, Zn 95% or Al 10%, Zn 90%).
Wire diameter: 1.24 mm – 5.5 mm
Tensile strength: 1290 MPa – 1340 MPa
Packing: spool or coil wrapped with moisture-proof paper or plastic film.
Nominal DiameterTensile StrengthStress at 1% ElongationTwistElongationStandardmmMPaMPaTimes/360 °CLo=250 mm

As per GB, EN, IEC, JIS, ASTM standard, as well as customers' request
	1.24–2.25	≥1340	≥1170	≥18	≥3%
	2.25–2.75	≥1310	≥1140	≥16	≥3%
	2.75–3.00	≥1310	≥1140	≥16	≥3.5%
	3.00–3.50	≥1290	≥1100	≥14	≥3.5%
	3.50–4.25	≥1290	≥1100	≥12	≥4%
	4.25–4.75	≥1290	≥1100	≥12	≥4%
	4.75–5.50	≥1290	≥1100	≥12	≥4%
